Carrier EQT1 4 CAR

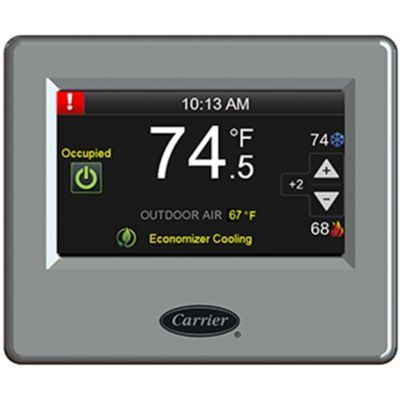

Carrier® - EQT1-4-CAR I-VU® Equipment Touch

OPERATOR INTERFACE

Wall-Mounted User Interface and Configuration Tool for Managing BACnet® HVAC Equipment

Carrier’s i-Vu Equipment Touch is an integrated component of the i-Vu Building Automation System. It features an illuminated, 4.3” color pixel touchscreen display and connects to a single Open (BACnet) equipment controller. Designed for wall mounting, it provides building occupants, facility managers, and installers a powerful user interface for managing a single piece of HVAC equipment in a building.

FEATURES

Hardware Features

• Illuminated 4.3”, 480 x 272 color pixel touchscreen display (no buttons)
• Built-in temperature and humidity sensing
• Connects to a single Open (BACnet) controller using Rnet communications
• Supports remote thermistor sensor (such as Carrier T55)
• Intuitive icon-driven / website-like screen navigation
• Default system screens such as scheduling and trends support international languages
• Ideal for single-zone rooftop applications such as office spaces and warehouses

For Building Occupants

• View current space temperature
• View operating mode (heat/cool/economizer)
• Change setpoints easily
• Initiate timed local overrides

For Facility Managers

• Multi-level password protection for security
• Convenient “Snapshot” screen shows equipment graphic and operating status
• Easy access to equipment configuration, schedules, trends, and alarms
• Audible \& visual alarm indication

For Installers

• Simple 4-wire installation
• Auto-discovers connected Open (BACnet) controller
• Screen files can be auto-uploaded on select controllers1, customized, or created from scratch
• Startup wizard and integrated help screens to assist with equipment start-up \& commissioning
