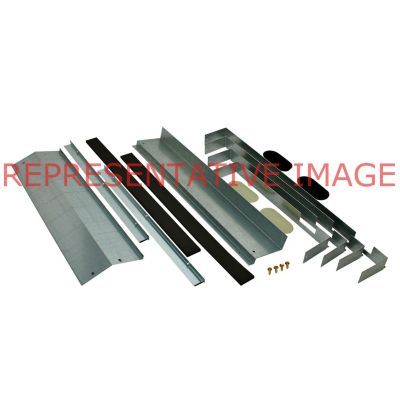

Carrier CRBTMPWR009A00

CRBTMPWR009A00 -Thru-the-Bottom Electric and Gas Connections Gas Heating/Electric Cooling 3 to 6 Tons

CRBTMPWR009A00 -Thru-the-Bottom Electric and Gas Connections Gas Heating/Electric Cooling 3 to 6 Tons

Thru-the-bottom, power connection accessory packages reduce the number of penetrations in the roof. They provide a watertight way to connect power wiring, control wiring, 115-v service power, and the gas supply line through the base of the unit in the condenser section.

When the thru-the-bottom power accessory package is purchased, one of two bulkhead connector configurations may be selected for power connections. Each set contains 2 bulkhead connector sizes (½-in. and ¾-in.). Set #1 uses the (3) hole cover plate and enables the low-voltage control wires (using one ½-in. bulkhead connector), the high-voltage power wires (using one ¾-in. bulkhead connector), and the gas line to pass through the basepan. Set #2 uses the (4) hole cover plate and enables the low-voltage control wires, the high-voltage power wires, the gas line, and the 115-v service power (using one ½-in. bulkhead connector) to pass through the basepan.

Package Contents:

1 - 50HJ540100 Support Bracket

4 - AL48AM217 Screws (#10 x ⅝-in.)

1 - DK06DA118 ½-in. Gas Adapter Fitting

2 - LF48ZZ050 ½-in. Elec. Bulkhead Connector

1 - LF48ZZ075 ¾-in. Elec. Bulkhead Connector

1 - AL83AS216 Screw (10-16 x ½-in. long)

1 - 48TC500045 Cover-(3) hole

1 - 48TC500046 Cover-(4) hole

1 - 48TC500041 Gasket
