Carrier CAOVRFLW001A00

CAOVRFLW001A00 - Condensate Overflow Switch Assembly

Condensate Overflow Switch Assembly

The condensate drain trap accessory kit includes a compact, adjustable drain pan trap for 6 to 30 ton packaged air handling units. The trap can be used in vertical (upflow) or horizontal installations, and is easier to install and service than a conventional trap. The trap includes an overflow shutoff switch that can be wired to turn off the unit or system if the drain trap becomes plugged. The included wire harness has a lead that can be connected to an alarm if desired.

The condensate drain trap accessory also makes trap maintenance easier. The bottom of the trap is transparent to show obstructions and a flexible cleaning brush is provided for routine maintenance.

Accessory Kit Contents:

1 Transparent Trap Tube

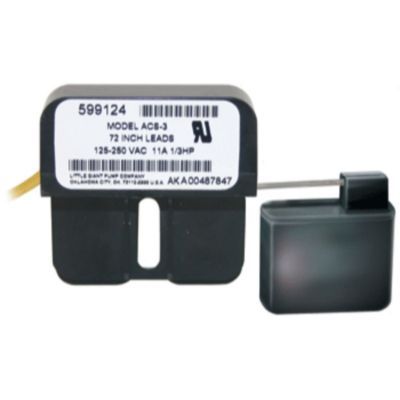

1 Overflow Switch Assembly

1 1-in. PVC Nipple

1 24-v Relay

1 Wire Harness

1 1-in. x 1-in. x 3⁄4-in. PVC Tee

1 3⁄4-in. x 3⁄4-in. x 3⁄4-in. PVC Tee

1 Pipe Cap

1 Cleaning Brush
