Schneider Electric ATS22D32S6U

Name: Schneider Electric ATS22D32S6U
Brand: Schneider Electric
SKU: CS4224001
Price: 1202.27 USD
Availability: OutOfStock

SKU: CS4224001MPN: ATS22D32S6U

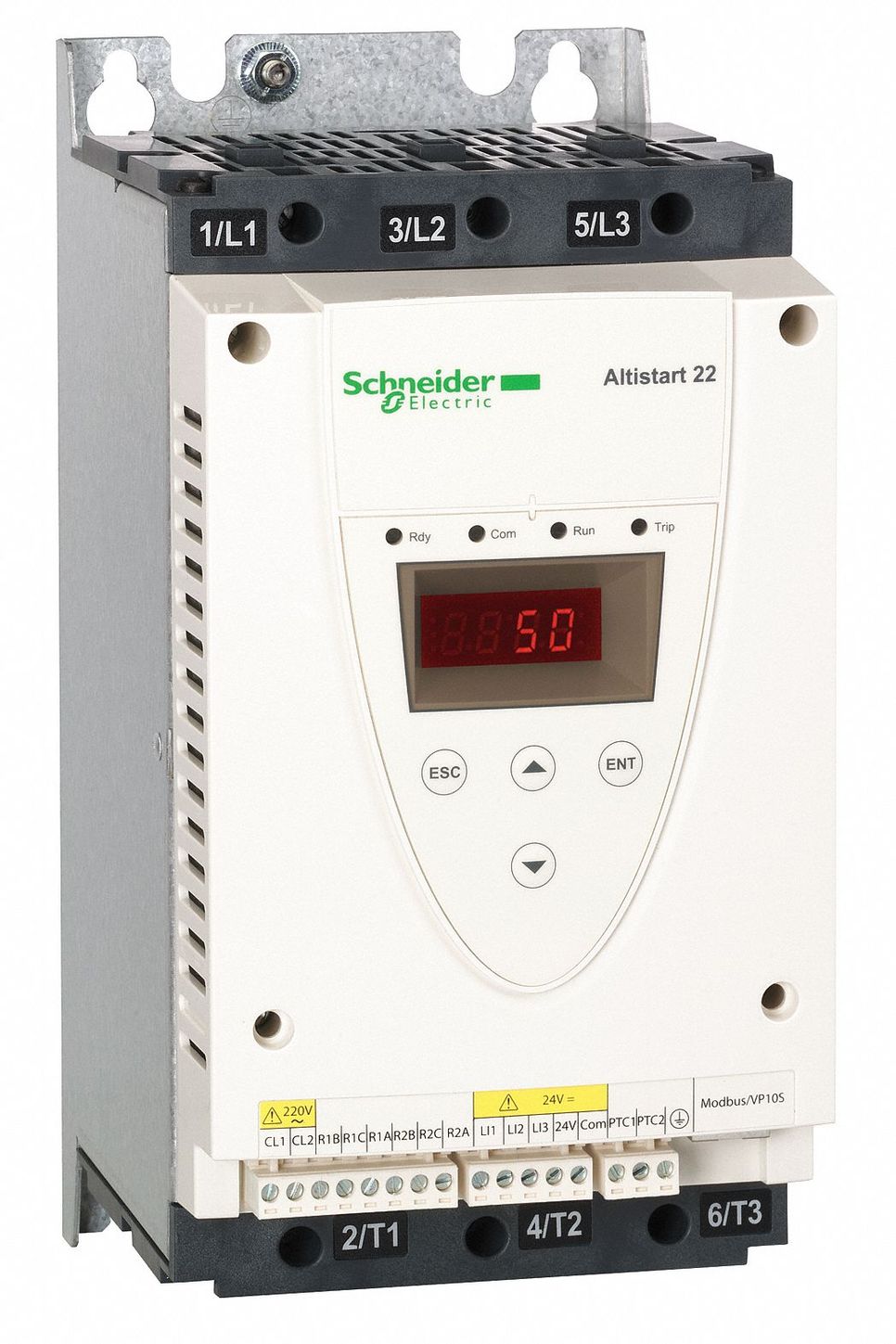

soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 7.5 to 25hp

$1,202.27

Unit

Available on backorder

Quantity

remove

add

Product Details

Altistart 22 Soft Start (ATS22)

For Asynchronous Motor* lcL Starter Rating: 27A* US Rated Supply Voltage: 208-600V* Motor Power Horsepower: 7.5-25 HP* Network Number of Phases: Triple-phase* Integrated Bypass* Assembly Style: with Heat Sink

Ambient Air Temperature For Storage	-25-70 °C
Assembly Style	with heat sink
Communication Data Link	serial
Communication Port Protocol	Modbus
Component Name	ATS22
Connector Type	1 RJ45
Control Circuit Consumption	20 W
Device Connection	in the motor supply line
Discrete Input Number	3.0
Discrete Output Number	2.0000
Factory Setting Current	27 A
Function Available	internal bypass
Installed Device	31.0000
Marking	CE
Network Frequency	45…66 Hz
Noise Level	45 dB
Operating Position	vertical ± 10 degree
Physical Interface	RS485 multidrop
Product Certifications	CCC# #CSA# #GOST# #C-Tick# #UL
Product Destination	asynchronous motors
Product Or Component Type	soft starter
Product Specific Application	pumps and fans
Ptc Probe Input	750 Ohm
Range Of Product	Altistart 22
Standards	EN/IEC 60947-4-2
Supply Voltage Limits	177-660 V
Transmission Rate	4800, 9600 or 19200 bps
Type Of Cooling	forced convection
Type Of Start	start with torque control (current limited to 3.5 In)
Utilisation Category	AC-53A
