Turck BK 19-0
SKU: CS4212078MPN: BK 19-0Alternate Part #: U2-07160
FIELD WIREABLE,M16VERSAFAST
$51.61
UnitAvailable on backorder
Product Details
Actuator and Sensor Field Wireable

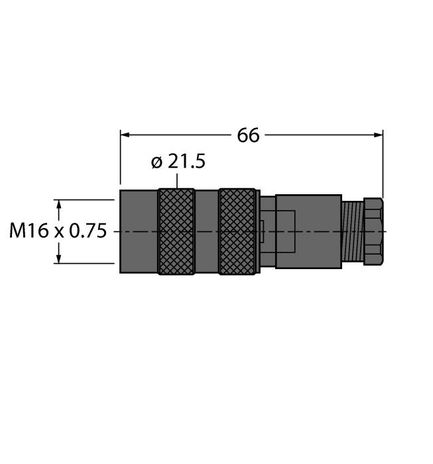

Female M16 × 0.75, straight
- Straight Female M16 versafast Field Wireable
- 19 pins
- Solder termination
- Plastic housing
- Solder connection
- 19-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
Attributes
| Acceptable Cable Diameter | 6…8 mm |
| Application | Signal |
| Connection Mode | Solder contact |
| Connector A | Female, M16 × 0.75, Straight |
| Core Cross Section Clamping Ability | 0.14…24 mm² |
| Coupling Nut Screw Material | Brass, CuZn, Nickel-plated |
| Current | 3 A |
| Customs Tariff Number | 85366990990.0000 |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| Housing Material | Plastic, PA |
| Mounting Thread | PG9 |
| Number Of Contacts | 19 |
| Voltage | 30 V |
Specifications
| SKU | CS4212078 |
|---|---|
| MPN | BK 19-0 |
| Alternate Part # | U2-07160 |
