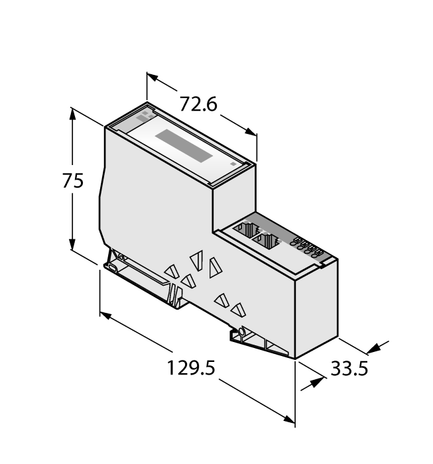

Turck BL20-E-GW-EN/ET

6827338 - MULTIPROTOCOL ETHERNET

Gateway for the BL20 I/O System

Multiprotocol Interface for Ethernet

With Extended Temperature Range

• DIP switch for adjustment of the node address
• Protection class IP20
• 2 x end brackets BL20-WEW35/2-SW
• 1 x end plate BL20-ABPL

• LEDs for display of supply voltage, group and bus errors

• Multiprotocol gateway between the BL20 system and the Ethernet protocols Modbus TCP, EtherNet/IP™ and PROFINET (from VN 03-00)
• The PROFINET protocol supports fast start-up (FSU)
• The EtherNet/IP™ protocol supports QuickConnect (QC)
• Integrated switch 10/100 Mbps
• Two RJ45 male for fieldbus connection
• Push-in clamps for connection of power supply

• Extended temperature range: -25 °C…+60 °C
• Circuit boards with conformal coating
