Turck NI4U-EG08-AP6X-H1341/S1589
SKU: CS4209795MPN: NI4U-EG08-AP6X-H1341/S1589Alternate Part #: 46006401
46006401 - UPROX, BARREL, DC, CON. M12
$165.38
UnitAvailable on backorder
Product Details

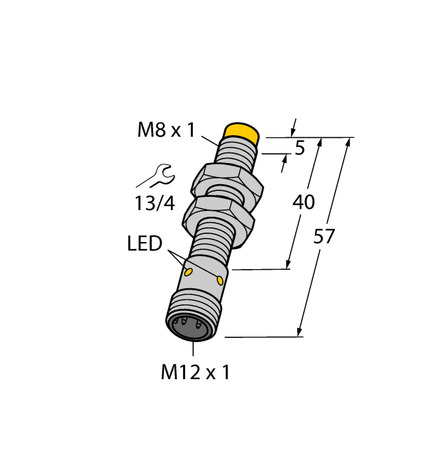

Inductive Sensor
With WeldGuard™ coating
- Threaded barrel, M8 x 1
- Stainless steel, 1.4427 SO
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M8 x 1 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Stainless steel, 1.4427 SO |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 4 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields, weldguard® |
| Switching Frequency | 2.0 kHz |
Specifications
| SKU | CS4209795 |
|---|---|
| MPN | NI4U-EG08-AP6X-H1341/S1589 |
| Alternate Part # | 46006401 |
