All ProductsTurck

Turck NI15-P30-AZ3X-B2131/S100

SKU: CS4209732MPN: NI15-P30-AZ3X-B2131/S100Alternate Part #: 4375410UPC/EAN: 4047101095852

4375410 - FERRITE, BARREL, AC, CON. ⅞I

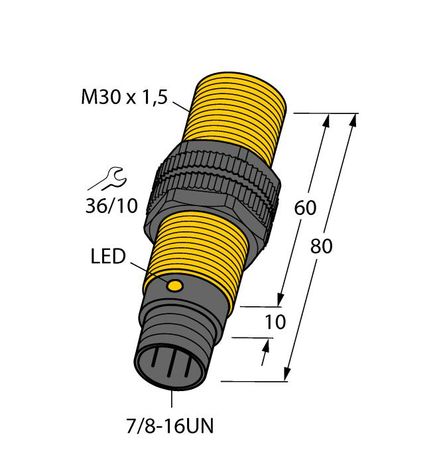

Turck BI10-P30-AZ3X-B2131, BI10-P30-RZ3X-B2131, BI10-P30-RZ3X-B2131/S100, NI15-P30-AZ3X-B2131/S100
$322.93
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Increased Temperature Range

  • Threaded barrel, M30 x 1.5
  • Plastic, PA12‐GF30
  • Temperatures up to +100 °C
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • ⅞” connector

Attributes

Ambient Temperature -25…+100 °C
Construction Size M30 x 1.5
Customs Tariff Number 85365080900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, ⅞″
Housing Material Plastic, PA12-GF30
Mounting Non-flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 15 mm
Switching Frequency 0.020 kHz

Specifications

SKUCS4209732
MPNNI15-P30-AZ3X-B2131/S100
Alternate Part #4375410
UPC/EAN4047101095852
