All ProductsTurck

Turck BI50R-Q80-AP6X2-H1141

SKU: CS4209267MPN: BI50R-Q80-AP6X2-H1141Alternate Part #: 1407530UPC/EAN: 4047101068993

1407530 - FERRITE, RING, DC, CON. M12

Turck BI50R-Q80-AP6X2-H1141
$607.53
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

Ring Sensor

  • Rectangular, height 40 mm
  • Plastic, PBT‐GF30‐V0
  • Static output behaviour
  • Output pulse length min. 100 ms
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • M12 x 1 male connector

Attributes

Ambient Temperature -25…+70 °C

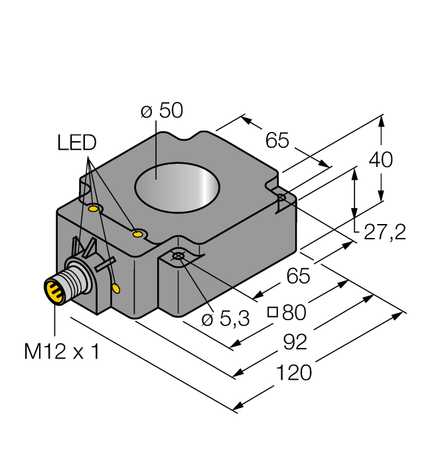

Construction Size 92 x 80 x 40 mm, Q80
Customs Tariff Number 85365019900.0000
Design Ring sensor
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, M12 × 1
Housing Material Plastic, PBT-GF30-V0
Inside Ring Diameter D 50 mm
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Special Feature Ring sensor, static output
Switching Frequency 0.010 kHz

Specifications

SKUCS4209267
MPNBI50R-Q80-AP6X2-H1141
Alternate Part #1407530
UPC/EAN4047101068993
