Square D M9F15202
SKU: CS4178536MPN: M9F15202
Multi9 - C60H - MCB - 2P - 2 A - D Curve - 415 V - 15 kA
Contact us for pricing and availability
Product Details
Multi 9 Miniature Circuit Breaker
- Rated Current: 2A* Number of Poles: 2-Pole* Break Capacity: Icu 10kA 415 VAC 50/60 Hz between phases conforming to EN/IEC 60947-2* Degree of Protection: IP40 for modular enclosure conforming to IEC 60529; IP20 conforming to IEC 60529
Attributes
| 9 Mm Pitches | 4.0000 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Contact Position Indicator | yes |
| Control Type | toggle |
| Curve Code | D |
| Device Application | distribution |
| Device Short Name | C60H |
| Earth Leakage Protection | separate block |
| Local Signalling | ON/OFF indication |
| Mechanical Durability | 20000 cycles |
| Mounting Mode | clip-on |
| Mounting Support | DIN rail |
| Network Frequency | 50/60 Hz |
| Network Type | AC# #DC |
| Number Of Protected Poles | 2.0000 |
| Overvoltage Category | IV |
| Poles Description | 2P |
| Product Name | Multi 9 C60 |
| Product Or Component Type | miniature circuit-breaker |
| Provision For Padlocking | padlockable |
| Range | Multi 9 |
| Trip Unit Technology | thermal-magnetic |
Specifications
| SKU | CS4178536 |
|---|---|
| MPN | M9F15202 |
You may also like
Square D M9F14204
Contact us for pricing and availability
Square D M9F15216
Contact us for pricing and availability
Square D M9F14310
Contact us for pricing and availabilitySquare D M9F14220
$267.54UnitSquare D M9F12210
Contact us for pricing and availability
Square D M9F43220
$197.59UnitSquare D M9F12216
$206.22Unit

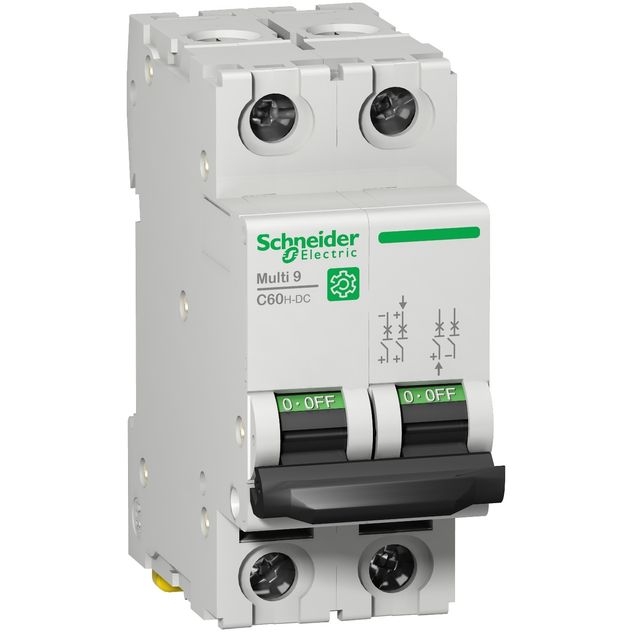

Square D M9U21240
