Telemecanique 9013FSG49J16

Name: Telemecanique 9013FSG49J16
Brand: Telemecanique
SKU: CS4178396
Availability: OutOfStock

SKU: CS4178396MPN: 9013FSG49J16UPC/EAN: 785901752448

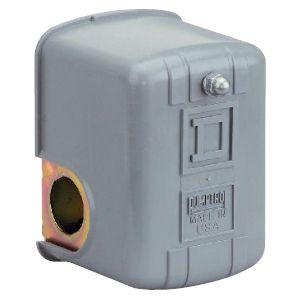

Square D Pumptrol, water pump switch 9013FS, adjustable diff., 8 20 PSI

Product Details

Pressure Switch

Type: F* Pumptrol* Fluid Connection: ¼ in NPT Internal* Differential PSI: 6 to 20 PSI* Range PSI: 9 to 30 PSI* PSI: 8 to 20 PSI* To control electrically driven water pumps* UL Listed File Number: E12158 CCN NKPZ* CSA Certified File Number: LR25490* Enclosure Rating: NEMA 1* Pressure Connection: Internal: 0.25 Inch NPT*

Sena Adjustable Range On Rising Pressure	9-30 psi
Sena Ambient Air Temperature For Operation	-33-257 °F
Sena Ambient Air Temperature For Operation 1	-33-257 °F
Sena Ambient Air Temperature For Storage	-33-257 °F
Sena Approximate Adjustable Differential	6-20 psi
Sena Destruction Pressure	220 psi
Sena Electrical Circuit Type	power circuit
Sena Factory Modification	-
Sena Local Display	without
Sena Maximum Operating Rate	10 cyc/mn
Sena Mechanical Durability	300000 cycles
Sena Operating Position	any position
Sena Pressure Actuator	diaphragm
Sena Pressure Sensor Name	9013FS
Sena Pressure Sensor Type	electromechanical pressure switch
Sena Pressure Switch Type Of Operation	regulation between 2 thresholds
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Specific Application	control electrically driven water pumps
Sena Protective Treatment	none
Sena Quantity Per Set	1
Sena Range Of Product	Square D Pumptrol
Sena Scale Type	adjustable differential
Sena Setting	internal
Sena Standards	UL 508# #NSF ANSI 61 Annex G# #CE
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	L2-T2# #L1-T1
Sena Type Of Packing	individual
Sena Value Of Setting	8…20 psi
