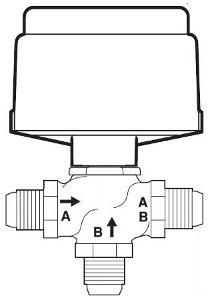

Schneider Electric VK-7312-202-4-04

VB: ⅝ in, 3W Mix, Globe, FLR, BR, 4.4 cv, 5 PSI, Act (MK-2690): Pneu, 2Pos/Prop, Slt PSIG, SR, NC, Air NPT, Linear, N1

Valve Assembly:

• Body Size: ⅝ in
• Configuration: 3-Way Mixing
• Type: Globe
• Connection: Flare
• Stem Flow Action: Stem down flow A to AB
• Material Trim: Brass
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 5 PSI
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
• Loss of Power Type: Spring Return
• Loss of Power Position: Up/Retract A closed
• Leads and Connections: ⅛ in Air NPT
• Mechanical Movement: Linear
• Protection Rating: NEMA 1

Assembly Components:

• Valve Body: VB-7312-0-4-04
• Valve Range: Venta
• Valve Linkage: AV-7400
• Actuator: MK-2690
• Actuator Comment: Comes with a black 5 to 10 PSIG spring

Product Alert: Not for use with steam
