Dwyer 8G-23-11

Name: Dwyer 8G-23-11
Brand: Dwyer
SKU: CS4125388
Price: 223.99 USD
Availability: OutOfStock

SKU: CS4125388MPN: 8G-23-11Alternate Part #: 128043-01

8G-23-11 ⅛ DIN TEMP CONT 2E

$223.99

Unit

Available on backorder

Quantity

remove

add

Product Details

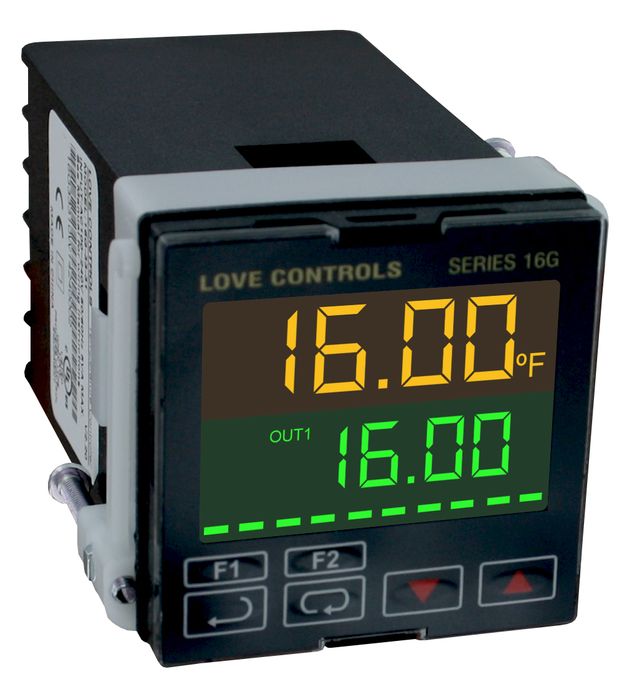

⅛ DIN temperature/controller, volt pulse/relay, RS485, 2 event inputs

Accuracy	± 1.8°F plus ±0.3% of span (±1°C plus ±0.3% of span) at 77°F (25°C) after 20 minutes warm up.
Agency Approval	CE, cULus.
Agency Approvals	CE, cULus.
Alarm Relay Ratings	3 A @ 250 VAC resistive.
Commodity Code	R0AF
Communication	RS-485 Modbus® ASCII/RTU communication protocol.
Control Output Rating	Relay: SPST, 5 A @ 250 VAC resistive; Voltage pulse: 12 V (max. 40 mA); Current: 4 to 20 mA; Linear voltage: 0 to 10 V.
Display	Process value: 4 digit, 0.47” H (12mm), orange LCD; Set point value: 4 digit, 0.47” H (12mm), green LCD.
Front Panel Rating	IP66.
Input	Thermocouple, RTD, DC voltages or DC current.
Inputs	Thermocouple, RTD, DC voltages or DC current.
Memory Backup	Nonvolatile memory.
Operating Temperature	32 to 122°F (0 to 50°C).
Power Consumption	5 VA max.
Power Requirement	100 to 240 VAC -20/+8%, 50/60 Hz; Optional 24 VDC, ±10%.
Storage Temperature	-42 to 150°F (-20 to 65°C).
