Dwyer 616KD-LR-B41-ND1

SKU: CS4124872MPN: 616KD-LR-B41-ND1Alternate Part #: 101888-00

616KD-LR-B41-ND1

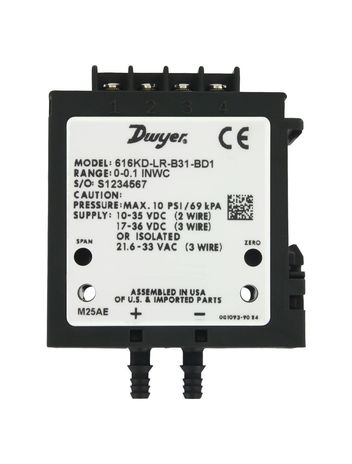

Dwyer 616KD-LR-A34-ND1, 616KD-LR-A45-BD1, 616KD-LR-A45-ND1, 616KD-LR-B31-BD1, 616KD-LR-B31-ND1, 616KD-LR-B32-BD1, 616KD-LR-B32-ND1, 616KD-LR-B34-BD1, 616KD-LR-B34-ND1, 616KD-LR-B35-BD1, 616KD-LR-B35-ND1, 616KD-LR-B41-BD1, 616KD-LR-B41-ND1, 616KD-LR-B42-BD1, 616KD-LR-B42-ND1
Contact us for pricing and availability

Product Details

Low range differential pressure transmitter, +/-0.1” wc with 1% accuracy, NPT process connection, front Zero push button and dual 4-20mA \& 0-10V output.

Attributes

Accuracy ±0.25% FS for ±0.4” (100 Pa) and ±0.5” (125 Pa), ±0.5% FS for ±0.25” (60 Pa), and ±1% FS for ±0.1” (25 Pa).
Commodity Code 0155
Compliance CE, optional plenum rated units meet UL Standard 2043.
Current Consumption 40 mA max.
Electrical Connection Screw type terminal block.
Enclosure Rating NEMA1 (IP20).
Loop Resistance Current Output: 0 to 1250Ω max; Voltage Output: Min. load resistance 1kΩ.
Mounting Orientation Vertical with pressure connections pointing down.
Output Signal 4 to 20 mA (2-wire), 0 to 5 VDC, 0 to 10 VDC (3-wire).
Power Requirement 10 to 35 VDC (2 wire), 17 to 36 VDC or isolated 21.6 to 33 VAC (3 wire).
Pressure Limit 1 psi max., operation; 10 psi burst.
Process Connection Barbed, dual size to fit ⅛” & 3/16” (3 mm & 5 mm) ID rubber or vinyl tubing, or ¼” NPT.
Response Time 2.5 Hz sample rate.
Service Air and non-combustible, compatible gases.
Stability ±1% / year FSO.
Wetted Material Consult factory.
Zero And Span Adjustment Push buttons.

Specifications

SKUCS4124872
MPN616KD-LR-B41-ND1
Alternate Part #101888-00
