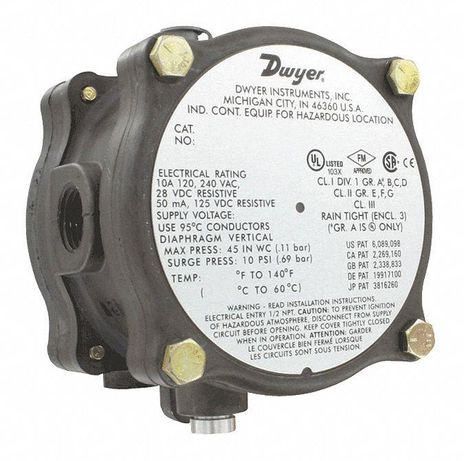

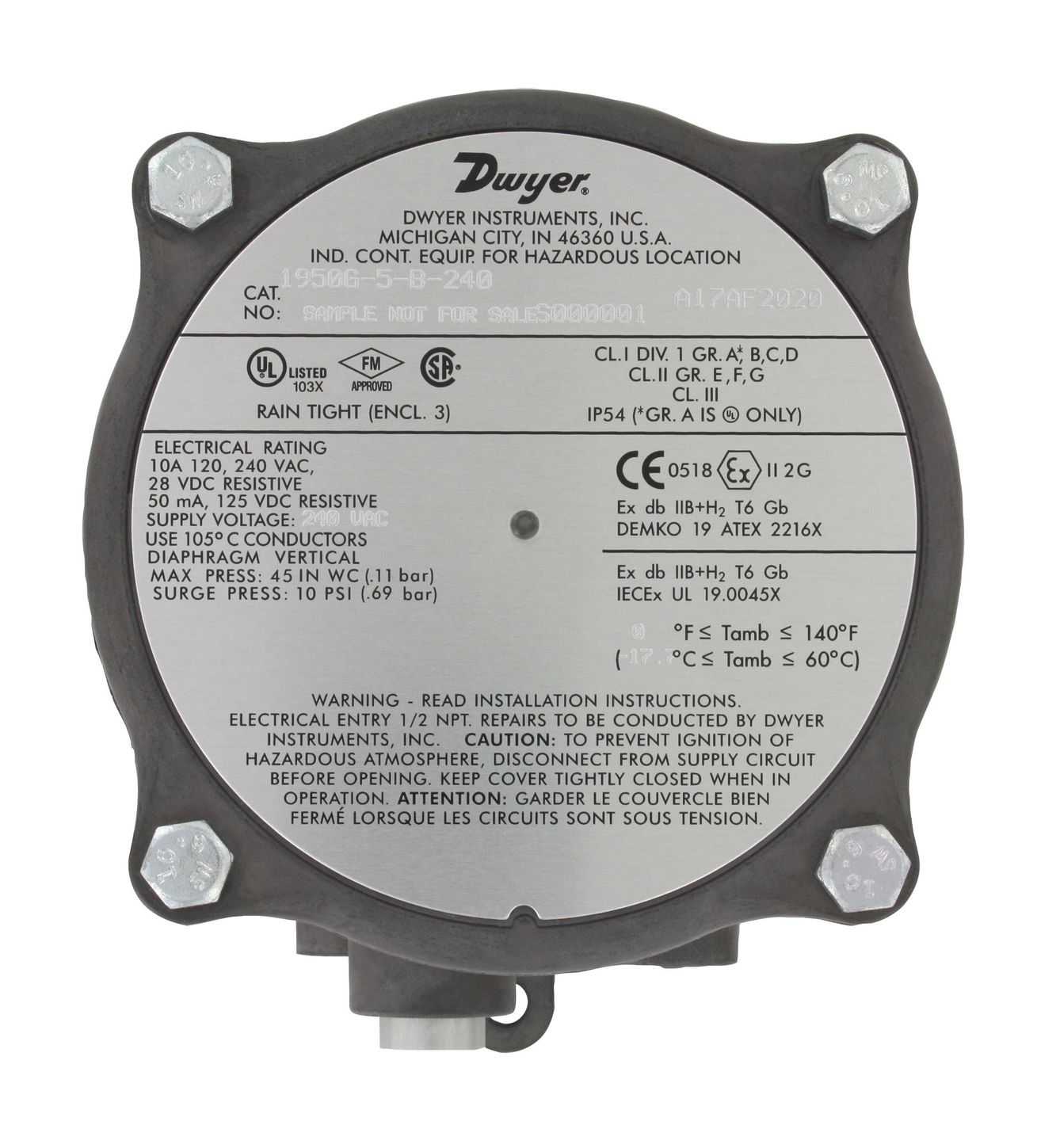

Dwyer 1950G-5-B-24-NA
SKU: CS4123594MPN: 1950G-5-B-24-NAAlternate Part #: 114050-23
1950G-5-B-24-NA PRESS SWITCH
$588.40
UnitAvailable on backorder
Product Details
Explosion-proof differential pressure switch, range 1.4-5.5” w.c., approx. deadband @ min. set point .4, approx. deadband @ max. set point .9.
Attributes
| Commodity Code | 2801 |
| Compliance | ATEX, CE, CSA, FM, IECEx, UL. |
| Electrical Connection | Internal terminal block. |
| Electrical Rating | 10 A, 120/240 VAC, 28 VDC. Resistive 50 mA, 125 VDC. |
| Enclosure Rating | NEMA 3 (IP54), NEMA 7 and 9. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Power Requirement | 24 VDC ±10%. 120 or 240 VAC ±10% optional. |
| Pressure Limit | 45” w.c. (11.2 kPa) continuous; 10 psig (68.95 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Service | Air and compatible combustible gases. |
| Set Point Adjustment | Screw type on top of housing. |
| Switch Type | 1 Form C relay (SPDT). |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS4123594 |
|---|---|
| MPN | 1950G-5-B-24-NA |
| Alternate Part # | 114050-23 |
You may also like

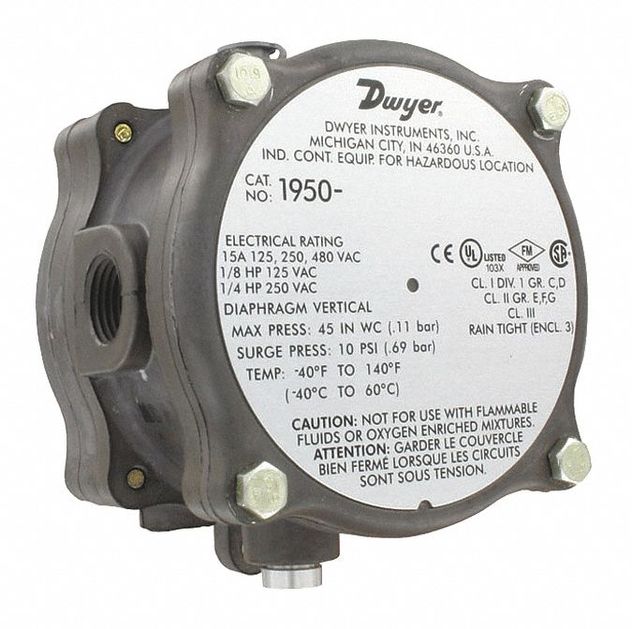

Dwyer 1950G-10-B-24-NA
$588.40Unit

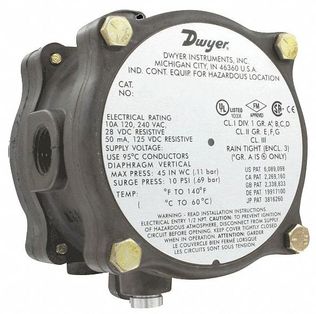

Dwyer 1950G-5-B-120-NA
$588.40Unit
Dwyer 1950G-1-B-24-NA
$588.40UnitDwyer 1950G-20-B-24-NA
$588.40Unit

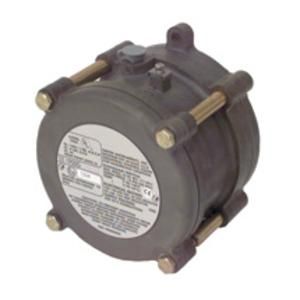

Dwyer 1950G-0-B-24-NA
$588.40UnitDwyer 1950G-10-B-120-NA
$588.40UnitDwyer 1950G-1-B-120-NA
$588.40UnitDwyer 1950G-00-B-120-NA
$588.40UnitDwyer 1950G-20-B-120-NA
$588.40UnitDwyer 1950G-00-B-24-NA
$588.40Unit

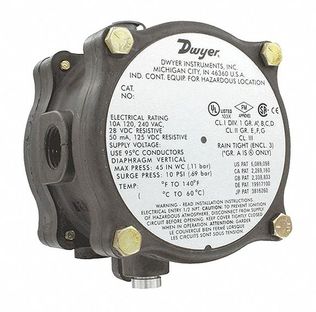

Dwyer 1950G-0-B-120-NA
$588.40Unit

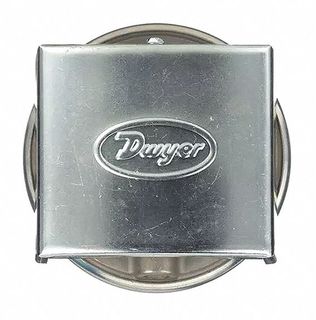

Dwyer 1823-5
