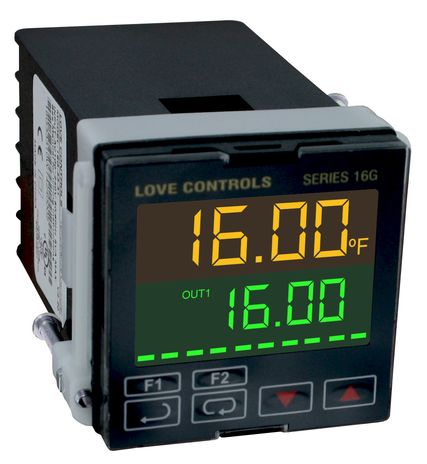

Dwyer 16G-23-31

Name: Dwyer 16G-23-31
Brand: Dwyer
SKU: CS4123253
Price: 207.86 USD
Availability: OutOfStock

SKU: CS4123253MPN: 16G-23-31Alternate Part #: 128044-02

16G-23-31 1/16DIN TEMP CON TR

$207.86

Unit

Available on backorder

Quantity

remove

add

Product Details

1/16 DIN temperature/controller, volt pulse/relay RS485, 1 event input, temp retransmission

Accuracy	± 1.8°F plus ±0.3% of span (±1°C plus ±0.3% of span) at 77°F (25°C) after 20 minutes warm up.
Agency Approval	CE, cULus.
Agency Approvals	CE, cULus.
Alarm Relay Ratings	3 A @ 250 VAC resistive.
Commodity Code	R0AC
Communication	RS-485 Modbus® ASCII/RTU communication protocol.
Control Output Rating	Relay: SPST, 5 A @ 250 VAC resistive; Voltage pulse: 12 V (max. 40 mA); Current: 4 to 20 mA; Linear voltage: 0 to 10 V.
Display	Process value: 4 digit, 0.47” H (12mm), orange LCD; Set point value: 4 digit, 0.47” H (12mm), green LCD.
Front Panel Rating	IP66.
Input	Thermocouple, RTD, DC voltages or DC current.
Inputs	Thermocouple, RTD, DC voltages or DC current.
Memory Backup	Nonvolatile memory.
Operating Temperature	32 to 122°F (0 to 50°C).
Power Consumption	5 VA max.
Power Requirement	100 to 240 VAC -20/+8%, 50/60 Hz; Optional 24 VDC, ±10%.
Storage Temperature	-42 to 150°F (-20 to 65°C).
