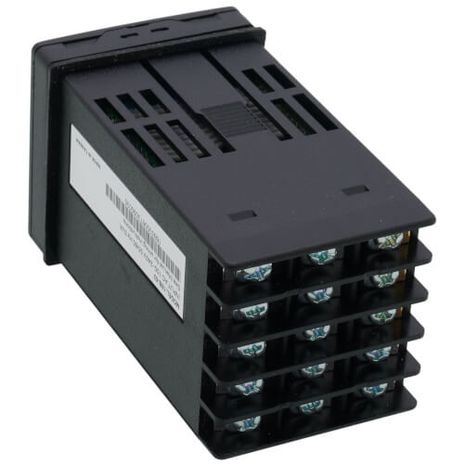

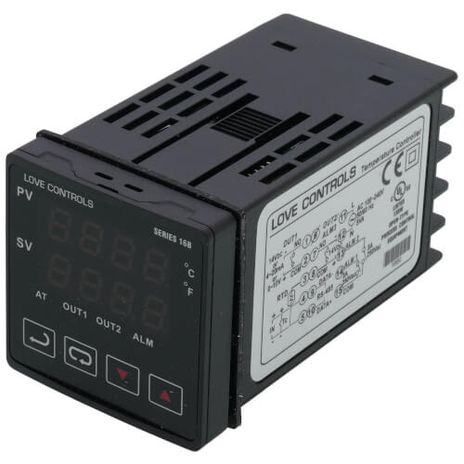

Dwyer 16B-53
SKU: CS4123244MPN: 16B-53Alternate Part #: 124461-02
16B-53 1/16 TEMP CONT, CUR/RLY
$166.06
Unit2 Units Available at Factory - Ships Same/Next Business Day
Product Details
1/16 DIN temperature/process controller, current output 1 and relay output 2.
Attributes
| Accuracy | ±0.25% span, ±1 least significant digit. |
| Agency Approval | CE, RoHS, cUL, UL. |
| Agency Approvals | CE, RoHS, cUL, UL. |
| Commodity Code | R0AD |
| Communication | RS-485 Modbus® A-5-11/RTU communication protocol. |
| Control Output Rating | Relay: SPST, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA. |

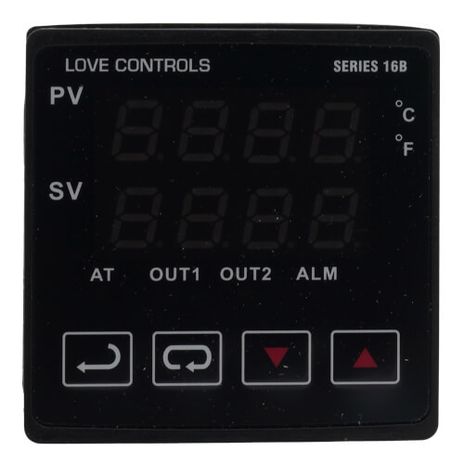

| Display | Two 4-digit, 7 segment .25” H (6.35 mm) LED’s. PV: red; SV: green. |
| Front Panel Rating | IP56. |
| Input | Thermocouple, RTD, DC voltages or DC current. |
| Inputs | Thermocouple, RTD, DC voltages or DC current. |
| Memory Backup | Nonvolatile memory. |
| Operating Temperature | 32 to 122°F (0 to 50°C). |
| Power Consumption | 5 VA max. |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz or 24 VDC (depending on model). |
Specifications
| SKU | CS4123244 |
|---|---|
| MPN | 16B-53 |
| Alternate Part # | 124461-02 |
