Dwyer V6EPS-S-D-5-S

Name: Dwyer V6EPS-S-D-5-S
Brand: Dwyer
SKU: CS4122333
Price: 1041.86 USD
Availability: OutOfStock

SKU: CS4122333MPN: V6EPS-S-D-5-SAlternate Part #: 119020-07

V6EPS-SD5S FLOTECT FLOW SW

$1,041.86

Unit

Available on backorder

Quantity

remove

add

Product Details

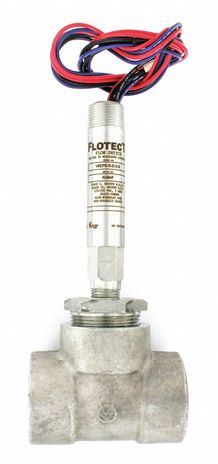

Mini-size flow switch, stainless steel upper and lower body, 1-½” NPT, stainless steel tee.

Attributes

Agency Approval	ATEX, CE, CSA, IECEx, KTL, UL.
Commodity Code	8203
Conduit Connection	¾” (19.05 mm) male NPT standard, ¾” (19.05 mm) female NPT or M25 with BSPT option on junction box models.
Electrical Connection	UL models: 18 AWG, 18” (457.20 mm) long. ATEX/CSA / IECEx models: terminal block.
Electrical Rating	UL models: 5 A @125/250 VAC. CSA, ATEX and IECEx models: 5 A @ 125/250 VAC (V~); 5A res., 3 A ind. @ 30 VDC (V ). MV option: .1 A @ 125 VAC (V~). MT option: 5 A @125/250 VAC (V~). [MT option not UL, CSA, ATEX or IECEx].
Enclosure Rating	Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on stainless steel body models only). ATEX CE 2813 II 2 G Ex db IIC T6 Gb Process Temp x0089¤75°C Alternate Temperature Class T5 Process Temp x0089¤90°C, 115°C (T4) Process Temp x0089¤105°C consult factory. EU-Type Certificate No.: KEMA 04ATEX2128. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014.IECEx Certified: For Ex db IIC T6 Gb Process Temp_x0089_¤75°C Alternate Temperature Class T5 Process Temp x0089¤90°C, 115°C (T4) Process Temp_x0089_¤105°C consult factory. IECEx Certificate of Conformity: IECEx DEK 11.0039; IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014; Korean Certified (KC) for: Ex d IIC T6 Gb Process Temp x0089¤75°C; KTL Certificate Number: 12-KB4BO-0091.
Mounting Orientation	Switch can be installed in any position but the actuation/deactuation flow rates in the charts are based on horizontal pipe runs and are nominal values.
Options Not Shown	Custom calibration, bushings, PVC tee, reinforced vane, DPDT relays.
Pressure Limit	Brass lower body with no tee models 1000 psig (69 bar), 303 SS lower body with no tee models 2000 psig (138 bar). Brass tee models 250 psi (17.2 bar), iron tee models 1000 psi (69 bar), forged and stainless steel tee models 2000 psi (138 bar), low flow models 1450 psi (100 bar).
Process Connection	½” (12.70 mm) male NPT or ½” (12.70 mm) male BSPT on models without a tee.
Service	Gases or liquids compatible with wetted materials.
Set Point Adjustment	Standard V6 models none. Without tee models vane is trimmable. Low flow models are field adjustable in the range shown. See set point charts on Catalog page.
Switch Type	SPDT snap switch standard, DPDT snap switch optional.
Upper Body	Brass or 303 stainless steel.
Wetted Material	Standard V6 Models: Vane: 301 SS; Lower Body: brass or 303 SS; Magnet: ceramic; Other: 301, 302 SS; Tee: brass, iron, forged steel, or 304 SS. V6 Low Flow Models: Lower body: brass or 303 SS; Tee: brass or 304 SS; Magnet: ceramic; O-ring: Buna-N standard, Fluoroelastomer optional; Other: 301, 302 SS.
