Dwyer TVA1113
SKU: CS4121642MPN: TVA1113Alternate Part #: 124101-11
TVA1113 FLUOROPOLYMER FLMTR
$1,541.85
UnitAvailable on backorder
Product Details

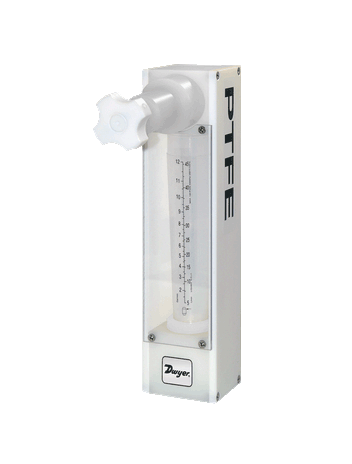

All fluoropolymer flowmeter, 75 mm scale, ¼” female NPT, flow rate 6.34 GPH (400 ml/min) water.
Attributes
| Accuracy | ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute). |
| Commodity Code | R4BC |
| Leak Integrity | 1 x 10-7 sccs of Helium. |
| Mounting | Vertical. |
| Pressure Limit | 100 psig (6.9 bar). |
| Repeatability | ±0.25%. |
| Scale | Direct reading, 75 mm or 125 mm lengths. |
| Scales | Direct reading, 75 mm or 125 mm lengths. |
| Service | Compatible liquids. |
| Turn Down Ratio | 10:1. |
| Wetted Material | Flowtube: PFA; Float and end fittings: PTFE; Guide rods: PCTFE. |
Specifications
| SKU | CS4121642 |
|---|---|
| MPN | TVA1113 |
| Alternate Part # | 124101-11 |
