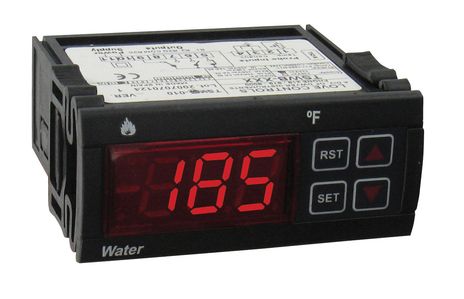

Dwyer TSWB-010
SKU: CS4121531MPN: TSWB-010Alternate Part #: 124628-00
TSWB-010 TEMP SW 115VAC F RED
$173.94
UnitAvailable on backorder
Product Details
Temperature/water level switch, 115 VAC, °F.
Attributes
| Accuracy | >1% of FS. |
| Ambient Operating Temperature | 32 to 158ºF (-30 to 70ºC). |
| Commodity Code | R0CI |
| Compliance | CE, cURus. |
| Control Type | On/off. |
| Display | 3-digit, red ½” digits. |
| Front Protection | IP64. |
| Horsepower Rating | 1HP – 10FLA, 60LRA 250 VAC. |
| Memory Backup | Nonvolatile memory. |
| Output | R1 SPST NO relay resistive load 5 A @ 250 VAC; R2 SPST NC relay resistive load 5 A @ 250 VAC; R3 SPDT relay resistive load 16 A @ 240 VAC. |
| Power Consumption | 4 VA (230V/115V) 1.5 VA (24V/12V). |
| Power Requirement | 115 VAC ± 10%, 230 VAC ± 10%, 24 VAC/DC ± 10%, 12 VAC/DC ± 10%. |
| Probe Level Input | Conductivity Probe: Max voltage 12 VAC. Sensitivity established from factory at 100KΩ. |
| Probe Range | PTC -58 to 302ºF (-50ºC to 150ºC); NTC -58 to 230ºF (-50ºC to 110ºC). |
| Probe Temperature Input | PTC (1000Ω @ 25°C); NTC (10KΩ @ 25°C). |
| Resolution | 1º (3 digits). |
| Storage Temperature | -4 to 176ºF (-30 to 80ºC). |
Specifications
| SKU | CS4121531 |
|---|---|
| MPN | TSWB-010 |
| Alternate Part # | 124628-00 |
