Dwyer TE-TNS-N254N-12
SKU: CS4121319MPN: TE-TNS-N254N-12Alternate Part #: 100570-19
TE-TNS-N254N-12 THERMOWELL
$26.05
UnitAvailable on backorder
Product Details

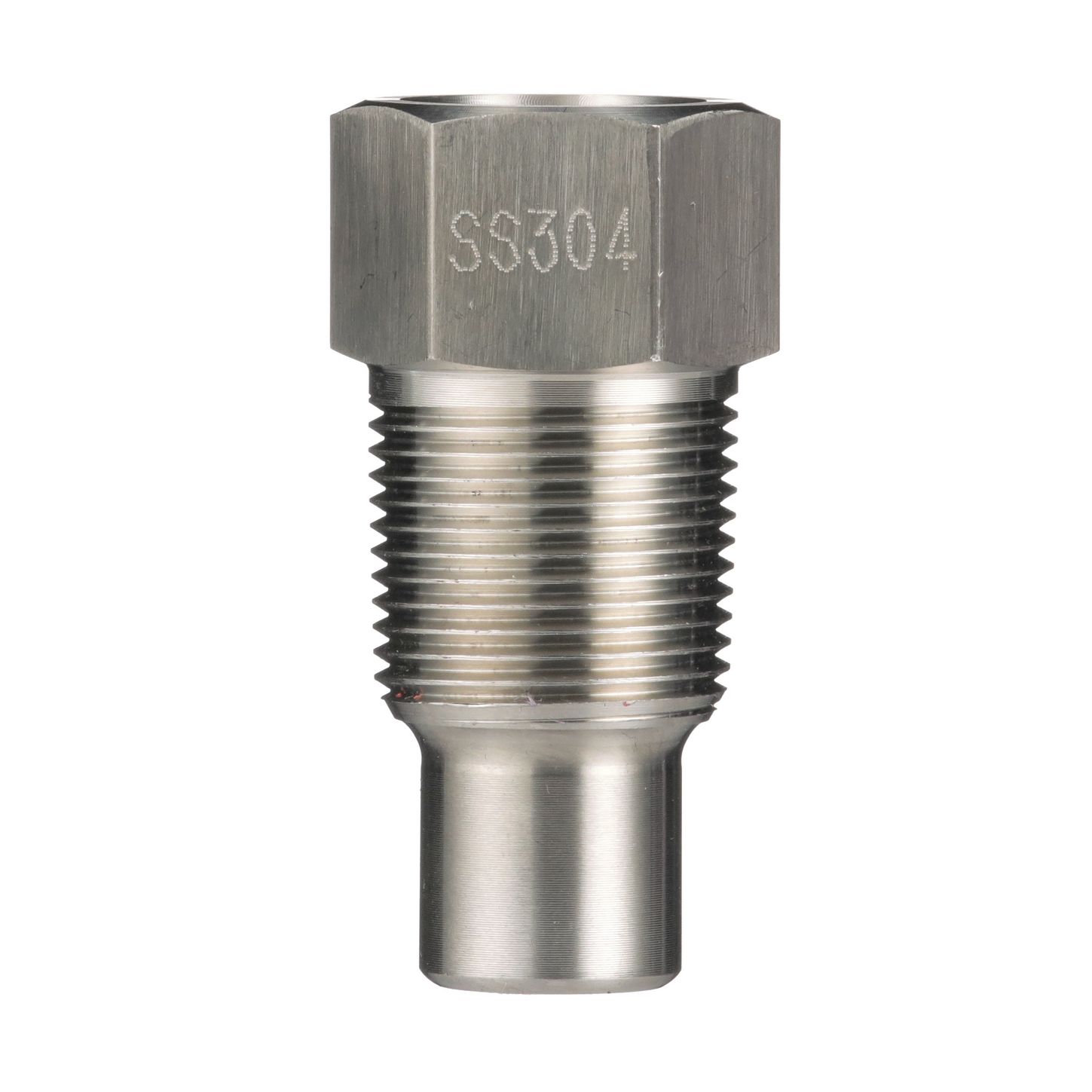

2-½” SS Thermowell with ½” NPT internal and ¾” external thread.
Attributes
| Accuracy | Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor DIN Class A: ±0.15°C @ 0°C (±0.28°F @ 32°F). |
| Cable Rating | Plenum option includes UL listed plenum cable. |
| Commodity Code | 0705 |
| Compliance | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). |
| Construction | Fabricated (welded) or machined model specific. |
| Housing Material | Meets UL, 94 V-O polycarbonate plastic. |
| Housing Rating | NEMA 4X (IP66) (DFW, IBW only). |
| Maximum Pressure | Fabricated: 140 psi; Machined: 304 SS: 3700 psi; 316SS: 5500 psi. |
| Maximum Temperature | Fabricated: 1000°F (538°C); Machined: 1200°F (648°C). |
| Sensor Curves | See the Resistance vs. Temperature Table. |
Specifications
| SKU | CS4121319 |
|---|---|
| MPN | TE-TNS-N254N-12 |
| Alternate Part # | 100570-19 |
