Dwyer SVTE-4
SKU: CS4121147MPN: SVTE-4Alternate Part #: 124756-51

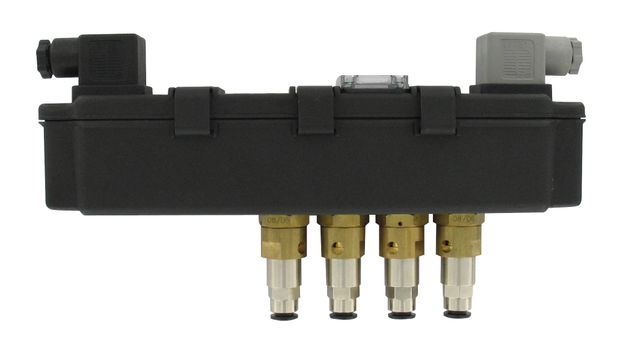

SVTE-4 EXPANSION MODULE
$677.53
UnitAvailable on backorder
Product Details
Expansion Module, 4 valves, any voltage.
Attributes
| Commodity Code | R6IA |
| Compliance | CE. |
| Electrical Connection | 2 DIN A 43652 connectors. |
| Enclosure Material | Polyamide with carbon fiber, polycarbonate, TPE rubber. |
| Enclosure Rating | NEMA 4X (IP65). |
| Fuse | 90 to 240 VAC 0.5 A delayed, 24VAC/DC 1.5 A delayed. |
| Mounting Orientation | Any position. |
| Off Time | 4 seconds to 210 seconds. |
| On Time | 150 msec to 700 msec. |
| Power Consumption | 25 VA/25 W. |
| Power Requirement | 90 to 240 VAC, 50 or 60 Hz or 24 VAC 50 to 60 Hz, 24 VDC, ±10%. |
| Pressure Limit | 145 psi (10 bar). |
| Process Connection | ¼” OD Push to Connect. |
| Service | Compatible gasses, filtered and oil-free. |
| Wetted Material | Pilot Body: Brass; Spring: 302 SS; Diaphragm: NBR. |
Specifications
| SKU | CS4121147 |
|---|---|
| MPN | SVTE-4 |
| Alternate Part # | 124756-51 |
