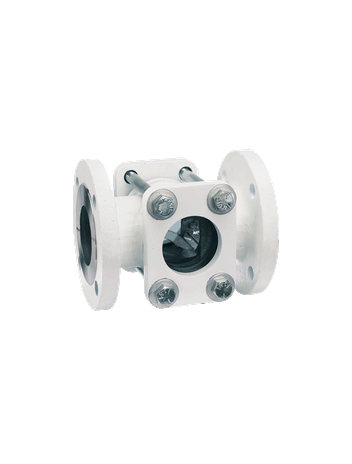

Dwyer SFI-350FCS-3
SKU: CS4120728MPN: SFI-350FCS-3Alternate Part #: 120012-00
350FCS SFI 3” FLANGE
$2,018.22
UnitAvailable on backorder
Product Details
Sight flow indicator, 3” body, 8.875” (225 mm) length, 7.500” (191 mm) flange dia., 3.000” (76 mm) viewing dia., 38 lb (17 kg).
Attributes
| Commodity Code | 8302 |
| Connection | Flanged. |
| Connections | Flanged. |
| Pressure Limit | 150 psig (10.34 bar). |
| Service | Compatible gases and liquids. |
| Temperature Limit | 200°F (93°C). |
| Wetted Material | Window: tempered glass; Body: carbon steel or 316 SS; Gasket: Buna-N, fluoroelastomer or PTFE; Indicator: 316 SS flapper (360). |
Specifications
| SKU | CS4120728 |
|---|---|
| MPN | SFI-350FCS-3 |
| Alternate Part # | 120012-00 |
