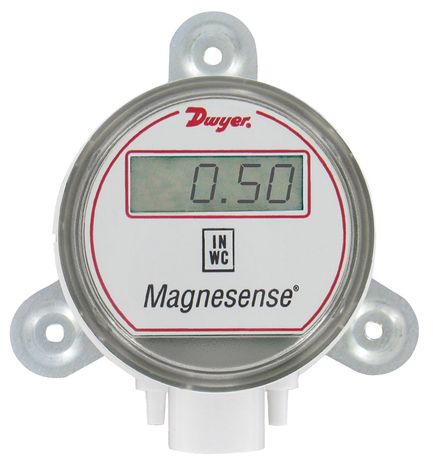

Dwyer MS-141-LCD

MS-141-LCD 4-20MA 15INWC W MNT

Differential pressure transmitter, 4-20 mA output, selectable range 15” w.c. (3 kPa), wall mount, with LCD.

Attributes

|-----------|-------| | Accuracy | ±1% for 0.25” (50 Pa), 0.5” (100 Pa), 2” (500 Pa), 5” (1250 Pa), 10” (2 kPa), 15” (3 kPa), 25” (5 kPa) ±2% for 0.1” (25 Pa), 1” (250 Pa) and all bidirectional ranges. | | Commodity Code | 0153 | | Compliance | CE. | | Current Consumption | 40 mA max. | | Display Optional | 4 digit LCD. | | Electrical Connection | 4-20 mA, 2-wire: European Style Terminal Block for 16 to 26 AWG. 0-10 V, 3-wire: European Style Terminal Block 16 to 22 AWG. | | Electrical Entry | ½” NPS Thread. Accessory: Cable Gland for 5 to 10 mm diameter cable. | | Enclosure Rating | NEMA 4X (IP66). | | Loop Resistance | Current output: 0-1250 Ω max; Voltage output: min. load resistance 1 kΩ. | | Mounting Orientation | Diaphragm in vertical position. | | Output Signal | 4 to 20 mA (2-wire); 0 to 5 V, 0 to 10 V (3-wire). | | Power Requirement | 10 to 35 VDC (2-wire); 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire). | | Pressure Limit | 1 psi maximum, operation; 10 psi, burst. | | Process Connection | 3/16” (5 mm) ID tubing. Maximum OD 9 mm. | | Response Time | 300 ms. | | Service | Air and non-combustible compatible gases. | | Stability | ±1% FS/year. | | Wetted Material | Consult factory. | | Zero Span Adjustments | Digital push button. |
