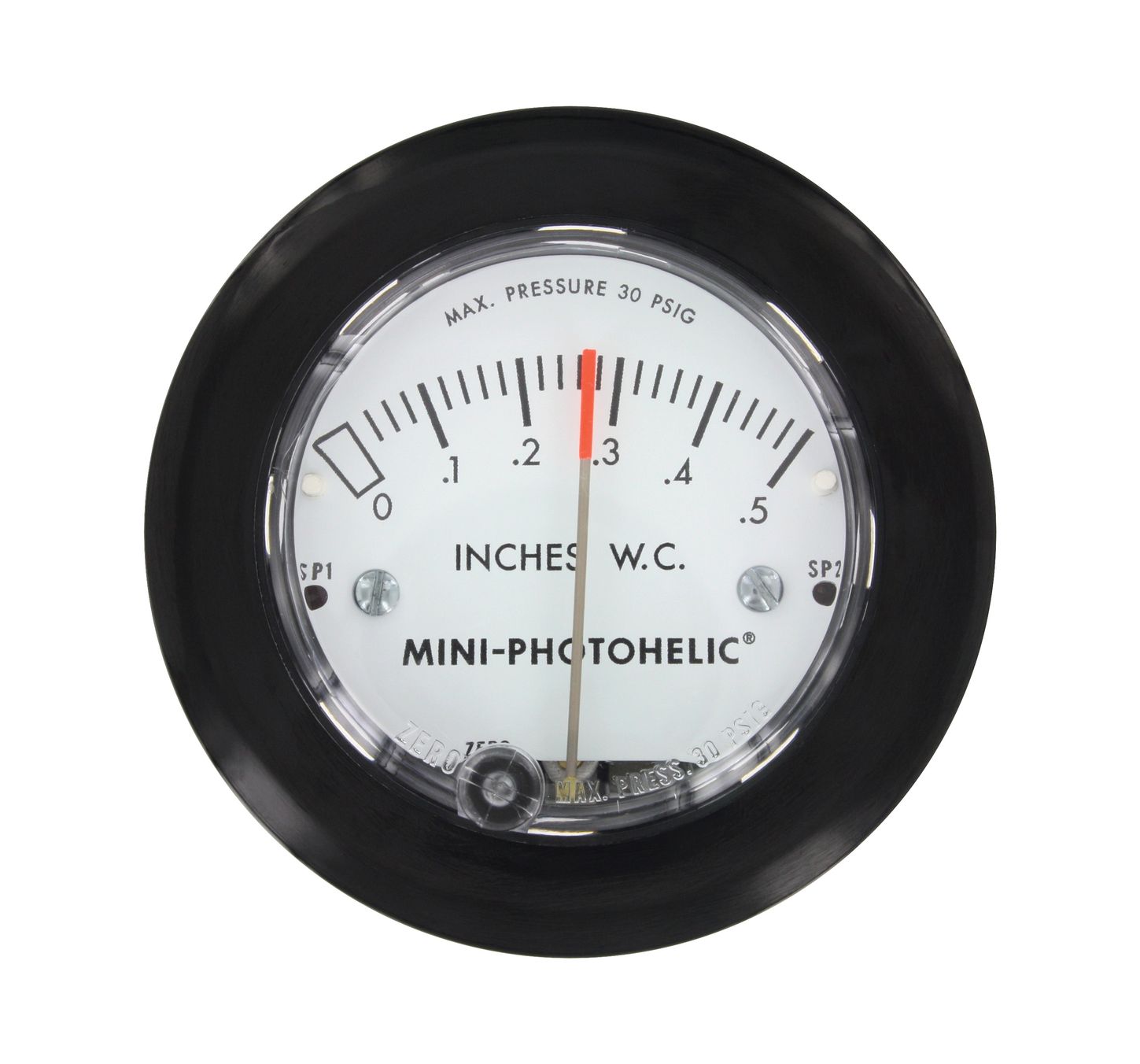

Dwyer MP-250PA
SKU: CS4119437MPN: MP-250PAAlternate Part #: 102369-17
MP-250PA 0-250 PA BARB
$572.37
UnitAvailable on backorder
Product Details
Differential pressure switch/gage, range 0-250 Pa.
Attributes
| Accuracy | ±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position. |
| Commodity Code | 1430 |
| Compliance | CE, cULus. |
| Electrical Connection | Screw type terminal block. Accepts 22-12 AWG wire. |
| Electrical Rating | 5 A @ 120/240 VAC resistive; 5 A @ 30 VDC. |
| Mounting Orientation | Gage face in vertical position. |
| Power Requirement | 24 VDC / 24 VAC 50/60 Hz 4 W. |
| Pressure Limit | 30 psig (2.067 bar). |
| Process Connection | Barbed for 3/16” ID tubing (STD); ⅛” male NPT (optional). |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Push buttons. |
| Size | 4-⅛” (104.78 mm) depth x 3-1/16” (77.79 mm) diameter. |
| Standard Accessories | (2) mounting screws, (1) .050” hex allen wrench. |
| Switch Type | (2) SPDT relays. |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS4119437 |
|---|---|
| MPN | MP-250PA |
| Alternate Part # | 102369-17 |
