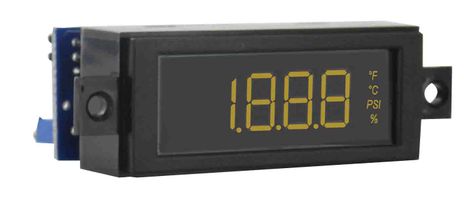

Dwyer DPMW-403P
SKU: CS4117430MPN: DPMW-403PAlternate Part #: 124490-08
DPMW-403P 4-20 MA RED #/BLK
$167.46
UnitAvailable on backorder
Product Details
LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, red segments, no backlight.
Attributes
| Accuracy | ±(0.1% FS + 2 count). |
| Agency Approval | RoHS. |
| Agency Approvals | RoHS. |
| Backlight Power Supply | 24 VDC @ 35 mA typical. |
| Commodity Code | R2VN |
| Connection | Screw terminals. |
| Conversion Rate | 3 per second. |
| Decimal Points | 3-position, user selectable. |
| Display | 3-½ digits, 7 segments, 0.45” (11.4 mm) H. |
| Engineering Units | DPMW-XXX: °F, °C, %, psi; DPMW-XXXP: V, A, KW, PF. |
| Input | 4-20 mA DC. |
| Input Impedance | 300Ω nominal. |
| Inputs | 4-20 mA DC. |
| Mounting | Window mount. |
| Operating Temperature | 32 to 122°F (0 to 50°C). |
| Polarity | Automatic, “-” displayed. |
| Power Supply | Powered by control loop. |
| Span And Zero | Adjustable. (±1999). |
| Storage Temperature | -4 to 158°F (-20 to 70°C). |
| Warm Up | 10 minutes typical. |
Specifications
| SKU | CS4117430 |
|---|---|
| MPN | DPMW-403P |
| Alternate Part # | 124490-08 |
