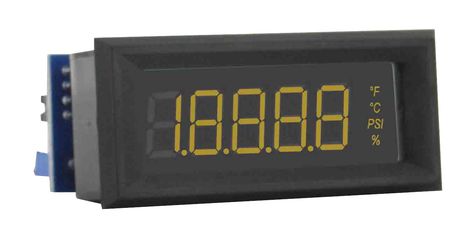

Dwyer DPML-502P
SKU: CS4117398MPN: DPML-502PAlternate Part #: 124488-17
DPML-502P 12/24 VDC GRN #/BLK
$241.86
UnitAvailable on backorder
Product Details
LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, green segments.
Attributes
| Accuracy | ±(0.1% FS + 2 count). |
| Agency Approval | RoHS. |
| Agency Approvals | RoHS. |
| Backlight Power Supply | 24 VDC @ 35 mA typical. |
| Commodity Code | R2VL |
| Connection | Screw terminals. |
| Conversion Rate | 3 per second. |
| Decimal Points | 4-position, user selectable. |
| Display | 4-½ digits, 7 segments, 0.45” (11.4 mm) H. |
| Engineering Units | DPML-XXX: °F, °C, %, psi; DPML-XXXP: V, A, KW, PF. |
| Input | DPML-4XX(P): 4 to 20 mA; DPML-5XX(P): 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC. |
| Input Impedance | DPML-4XX(P): 300Ω nominal; DPML-5XX(P): 390Ω nominal. |
| Inputs | DPML-4XX(P): 4 to 20 mA; DPML-5XX(P): 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC. |
| Mounting | Snap-in bezel mount. |
| Operating Temperature | 32 to 122°F (0 to 50°C). |
| Polarity | Automatic, “-” displayed. |
| Power Supply | DPML-4XX(P): Powered by control loop; DPML- 5XX(P): 12 VDC or 24 VDC. |
| Span And Zero | Adjustable (±19999 counts). |
| Storage Temperature | -4 to 158°F (-20 to 70°C). |
| Warm Up | 10 minutes typical. |
Specifications
| SKU | CS4117398 |
|---|---|
| MPN | DPML-502P |
| Alternate Part # | 124488-17 |
