Dwyer DPGW-07
SKU: CS4117348MPN: DPGW-07Alternate Part #: 102039-57
DPGW-07 50 PSIG
$178.78
UnitAvailable on backorder
Product Details

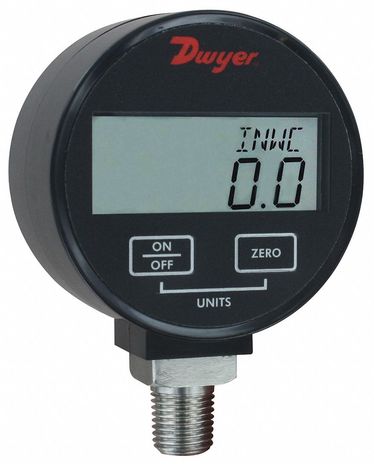

Digital pressure gage, range 0 to 50 psi, selectable engineering units: 50.00 psig, 3.515 kg/cm², 3.447 bar, 101.8” Hg, 115.3 ft w.c., 344.7 kPa, 800 oz/in², 1384” w.c., 3447 mbar, 3515 cm w.c., 2586 mm Hg, 0.02 psi resolution.
Attributes
| Accuracy | ±1.0% F.S. (Includes linearity, hysteresis, repeatability.) |
| Auto Shut Off | 20 minute auto shut-off. |
| Commodity Code | 1804 |
| Display | 4-digit LCD (.425” H x .234” W digits). |
| Housing Material | ABS plastic. |
| Power Requirement | 9 V alkaline battery, included, user replaceable. |
| Pressure Limit | 2X pressure range. Vacuum range max. pressure is 30 psig. |
| Process Connection | ¼” male NPT. |
| Service | DPGA: air and compatible gases; DPGW: liquids and compatible gases. |
| Size | 2.62” OD x 1.52” deep. |
| Thermal Effect | 0.05% FS/°F. |
| Wetted Material | DPGA: 316L SS, silicone sensor; DPGW: 316L SS. |
Specifications
| SKU | CS4117348 |
|---|---|
| MPN | DPGW-07 |
| Alternate Part # | 102039-57 |
