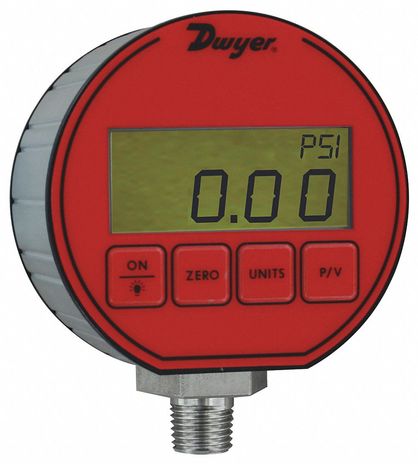

Dwyer DPG-011
SKU: CS4117316MPN: DPG-011Alternate Part #: 102049-10
DPG-011 5000 PSI BATT
$340.10
UnitAvailable on backorder
Product Details
Digital pressure gage, selectable engineering units: 5000 psi, 351.5 kg/cm², 344.8 bar.
Attributes
| Accuracy | DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity, hysteresis, repeatability). |
| Auto Shut Off | Gage: 60 minute auto shut-off. Auto shut-off may be disengaged. Backlight: 2 minute auto shut-off. |
| Battery Life | 2000 hours typical; Low battery indicator. (60 hours in continuous use). |
| Commodity Code | 1801 |
| Compliance | DPG-000: CE; DPG-100: CE, FM approved to be intrinsically safe for Class I, Division 1, Groups A, B, C and D, for ranges 0-5 to 0-3000 psi. |
| Display | 4 digit (.425” H x .234” W digits). |
| Enclosure Rating | Designed to meet NEMA 4/4X (IP66). |
| Housing Material | Polycarbonate front and back cover, anodized aluminum extruded housing with recessed grooves, polycarbonate overlay, Buna-N O-rings, 316L SS sensor construction. |
| Power Requirement | (2) AAA alkaline batteries, included, user replaceable. |
| Pressure Limit | 2x pressure range for models x0089¤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range. |
| Process Connection | ¼” male NPT. |
| Service | Compatible liquids and combustible gases (for FM listing see Agency Approvals below). |
| Size | 3.00” OD x 1.90” deep (max). |
| Thermal Effect | Between 70 to 130°F is 0.016%/F. Between 32 to 70°F is 0.026%/F. Between 10 to 32°F is 0.09%/F. Between 0 to 10°F is 0.50%/F. |
| Wetted Material | Type 316L SS. |
Specifications
| SKU | CS4117316 |
|---|---|
| MPN | DPG-011 |
| Alternate Part # | 102049-10 |
