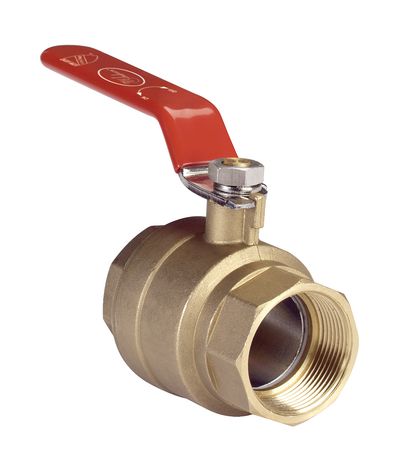

Dwyer DBVL-00
SKU: CS4117055MPN: DBVL-00Alternate Part #: 128077-00
DBVL-00 LOWPB BRS BALLVLV ¼
$12.85
UnitAvailable on backorder
Product Details
Brass ball valve, 600 psi, full port, ¼”
Attributes
| Agency Approval | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). |
| Agency Approvals | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). |
| Commodity Code | RVCS |
| End Connections | DBVL: ¼” to 3” female NPT; SWBV: ¼” to 3” sweat connections. |
| Other Material | Other Materials: Body Gland and Stem Nut: Brass; Handle and Handle Nut: Steel; Handle Cover: Rubber. |
| Other Materials | Other Materials: Body Gland and Stem Nut: Brass; Handle and Handle Nut: Steel; Handle Cover: Rubber. |
| Pressure Limit | ¼” to 2”: -29” Hg to 600 psi (-736 mm Hg to 41 bar) WOG; DBVL: 2-½” to 3”: -29” Hg to 250 psi (-736 mm Hg to 17 bar) WOG; SWBV: 2-½” to 3”, -29” Hg to 400 psi (-736 mm Hg to 27 psi) WOG. |
| Service | Gases and liquids compatible with wetted materials. |
| Wetted Material | Body, Body Cap, and Stem: Brass; Seat and Packing: PTFE; Ball: DBVL: ¼” to 1”: Chrome Plated Brass; 1-¼” to 3”: Stainless Steel; SWBV: Stainless Steel. |
Specifications
| SKU | CS4117055 |
|---|---|
| MPN | DBVL-00 |
| Alternate Part # | 128077-00 |
