All ProductsDwyer

Dwyer CDT-2D4B

SKU: CS4116538MPN: CDT-2D4BAlternate Part #: 101636-93

CDT-2D4B CO2 XMTR 2000PPM CURV

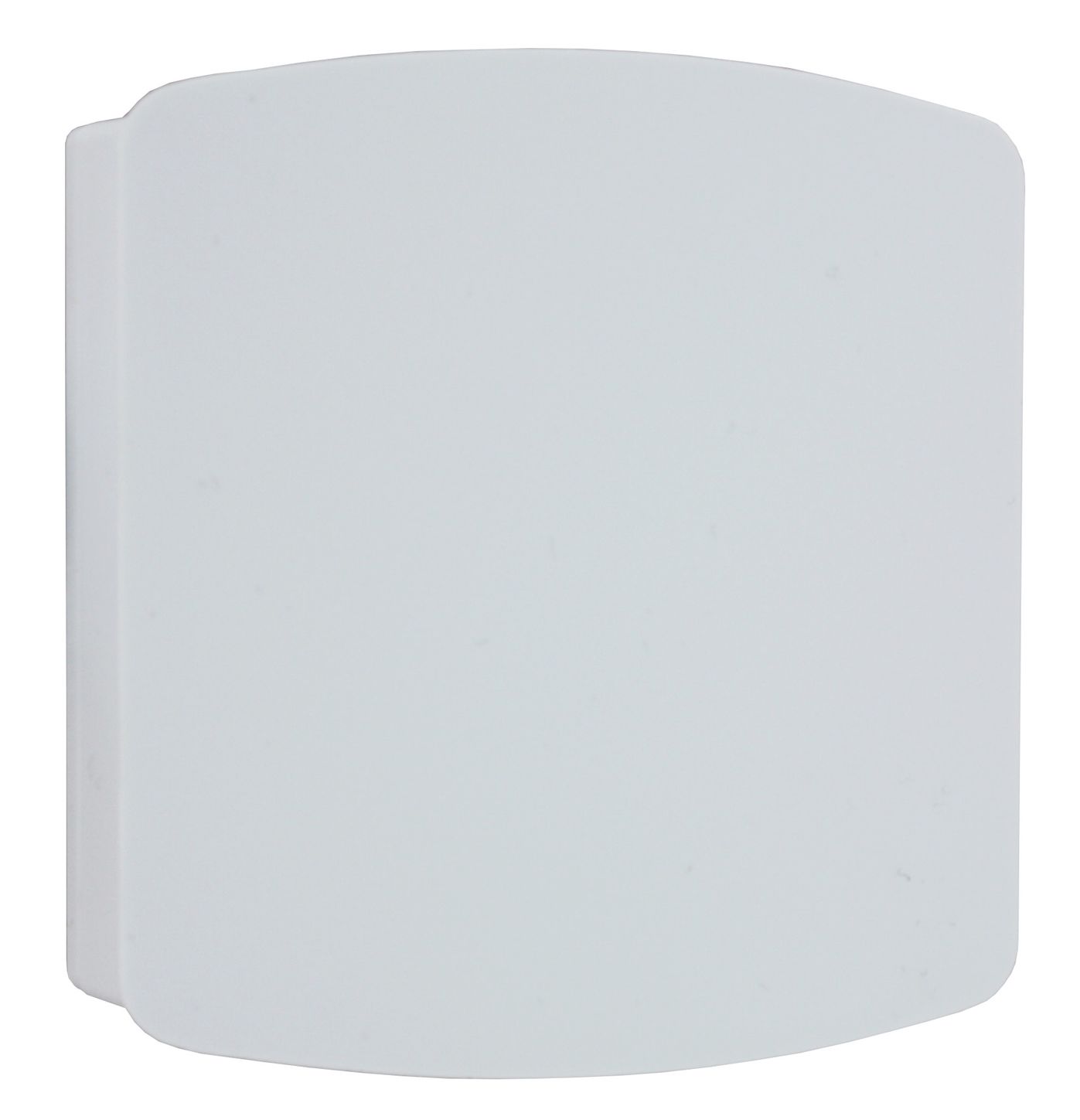

Dwyer CDT-2D40, CDT-2D44, CDT-2D4B
$276.26
Unit
Available on backorder
remove
add

Product Details

Carbon Dioxide Transmitter, duct mount, 2000 ppm, CO2 transmitter with current/voltage CO2 outputs and 10K Ohm Type II thermistor temperature output.

Attributes

Accuracy CO2: ±40 PPM + 3% of reading (2000 PPM CO2); ± 50 PPM + 5% of reading (5000 PPM CO2); RH: ±2% (10 to 90% RH) (for units configured with humidity output); Temperature: ±1°C @ 25°C.
Commodity Code 0603
Compliance CE.
Humidity Limit 0 to 85% (non-condensing).
Humidity Limits 0 to 85% (non-condensing).
Output Current: 4-20 mA (max. 500 Ω); Voltage: 0-5 VDC or 0-10 VDC (min. 500 Ω); Relay: SPST NO rated 2A @ 30 VDC; RTD or thermistor per Resistance vs. Temperature Table (depending on model).
Power Consumption Average: 2 w; Peak: 3.75 w.
Power Requirement 16-35 VDC or 19-28 VAC.
Range CO2: 0 to 2000 or 0 to 5000 PPM (depending on model); Temperature: 32 to 122°F (0 to 50°C).
Response Time 2 min for 90% step change.
Service NDIR, 15 year life expectancy.

Specifications

SKUCS4116538
MPNCDT-2D4B
Alternate Part #101636-93
