Dwyer BICV-0F01
SKU: CS4116191MPN: BICV-0F01Alternate Part #: 124672-01

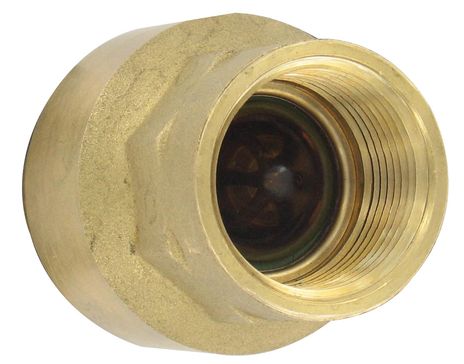

BICV-0F01 INLINE CHECK VALVE
$26.21
UnitAvailable on backorder
Product Details
Brass inline check valve, ⅜” connection, 4.55 Cv value, weight 5.9 oz (168 g).
Attributes
| Body | 1-piece. |
| Commodity Code | RVKA |
| Line Size | See Catalog page. |
| Pressure Limit | ¼” to 2”: 400 psi (27.6 bar) WOG; 2-½” to 4”: 175 psi (12.1 bar) WOG; all sizes: 125 psi (8.6 bar) SWP. |
| Process Connection | Female NPT. |
| Service | Liquids and gases compatible with wetted material. |
| Wetted Material | Valve Body: Brass (CW617N); Obstructer: Polyethermide; Seat: ¼” - NBR rubber, ⅜” to 4” - fluoroelastomer; Spring: 302 SS. |
Specifications
| SKU | CS4116191 |
|---|---|
| MPN | BICV-0F01 |
| Alternate Part # | 124672-01 |
