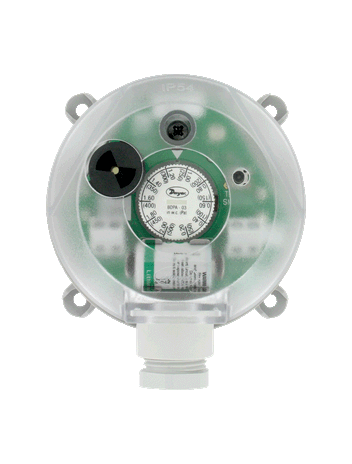

Dwyer BDPA-03-2-N

Name: Dwyer BDPA-03-2-N
Brand: Dwyer
SKU: CS4116174
Price: 143.10 USD
Availability: OutOfStock

SKU: CS4116174MPN: BDPA-03-2-NAlternate Part #: 124773-08

BDPA-03-2-N DIFF PRES SWITCH

$143.10

Unit

Available on backorder

Quantity

remove

add

Product Details

Adjustable differential pressure alarm, range .20-2.00” w.c., M20 connection.

Agency Approval	CE, RoHS.
Agency Approvals	CE, RoHS.
Alarm Acknowledge	Button press.
Alarm Indication	Red LED and audible alarm.
Alarm Level	Approximately 90 db at 4” (10 cm).
Battery Life	Approximately 1.5 years with 3.6 V/1.2 Ah.
Commodity Code	R8BC
Electrical Connection	Screw terminals. M20x1.5 with cable strain relief or optional ½” NPT connection.
Electrical Connections	Screw terminals. M20x1.5 with cable strain relief or optional ½” NPT connection.
Electrical Rating	1.0 A @ 30 VDC/VAC.
Enclosure Rating	IP21.
Mounting Orientation	Vertically, with pressure connections pointing downwards.
Power Requirement	16 to 30 VDC, 18 to 30 VAC or 3.6 V LS14250 lithium metal battery, installed functional, user replaceable. Battery acts as back-up if power is lost.
Pressure Limit	Max. operating pressure: 40” w.c. (10 kPa) for all pressure ranges.
Process Connection	5/16” (7.94 mm) outside diameter tubing, ¼” (6.0 mm) inside diameter tubing.
Process Connections	5/16” (7.94 mm) outside diameter tubing, ¼” (6.0 mm) inside diameter tubing.
Repeatability	±15% FS.
Service	Air and noncombustible, compatible gases.
Switch Type	SPDT.
Wetted Material	Diaphragm: Silicone; Housing: Switch Body: PA 6.6 and POM; Cover: Polystyrene.
