Dwyer A1F-O-SS-1-2

SKU: CS4116066MPN: A1F-O-SS-1-2Alternate Part #: 126740-59

A1F-O-SS-1-2

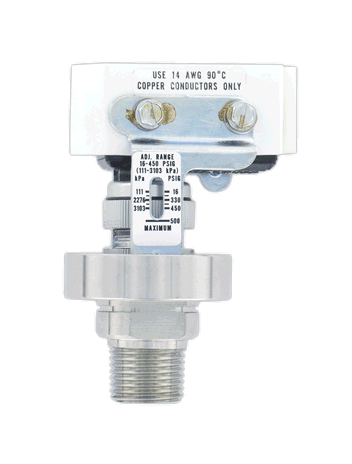

Dwyer A1F-O-SS-1-2, A1F-O-SS-1-3, A1F-O-SS-1-4
$206.65
Unit
Available on backorder
remove
add

Product Details

Pressure switch, range 4-75 psig (0.28-5.17 bar), min. deadband 4 psig (0.27 bar), max. deadband 15 psig (1.0 bar).

Attributes

Commodity Code 9010
Compliance CE, cUL, UL.
Deadband Fixed, see products on Order page for minimum and maximum deadband.
Electrical Connection Screw terminals.
Electrical Rating 15 A @ 120/240/480 VAC, ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC.
Enclosure Rating No rating for open construction. Optional -PC enclosure meets NEMA 4X standards.
Mounting Orientation Within 20° of vertical.
Pressure Limit 500 psig (34 bar).
Process Connection ¼” female NPT and ½” male NPT.
Service Compatible liquids and gases.
Set Point Adjustment Knurled screw cap with indicating scale.
Switch Type SPDT snap switch.
Wetted Material Pressure Chamber: 316 SS; Diaphragm: Fluorocarbon.

Specifications

SKUCS4116066
MPNA1F-O-SS-1-2
Alternate Part #126740-59
