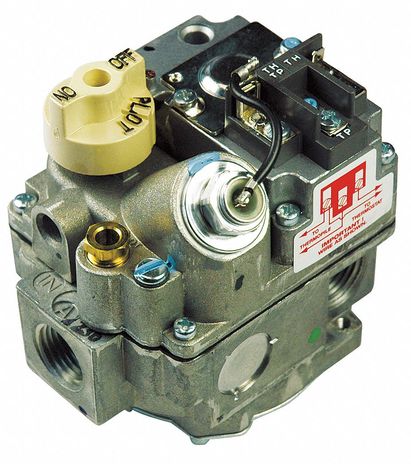

Robertshaw 700-501

Gas Valve

The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity ⅜” pipe to high capacity 1” pipe up to 720,000 BTU usage.

Features and Benefits

• Gas cock dial marking Off - Pilot - On
• Pilot outlet ¼” tubing
• Ambient temperature of -40°F to 175°F
• Terminal type combination screw/spade
• Maximum inlet pressure 14” WC (0.5 PSI)
• Standard NEMA terminals
• Inlet filtered screen
• Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
• RoHS compliant
