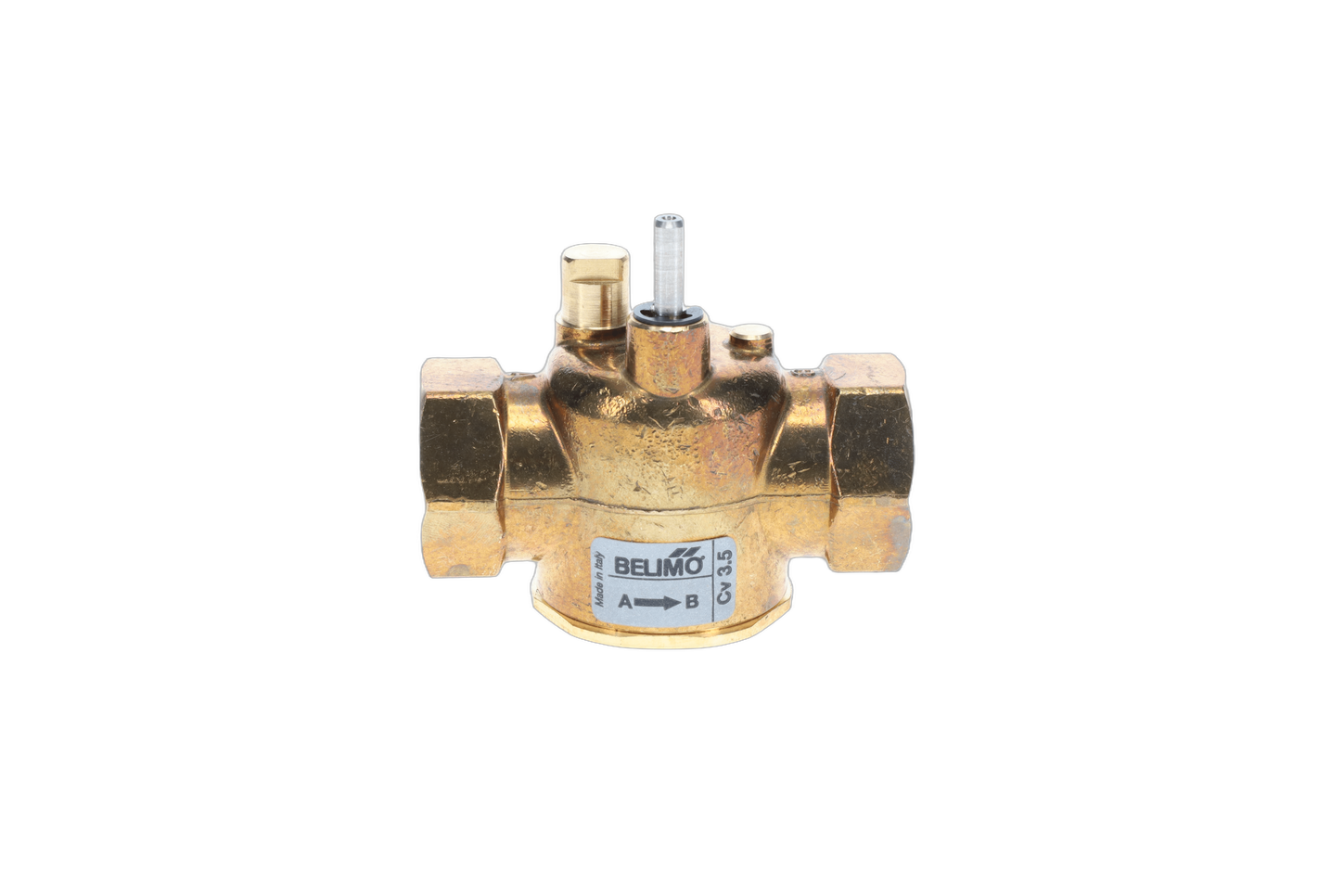

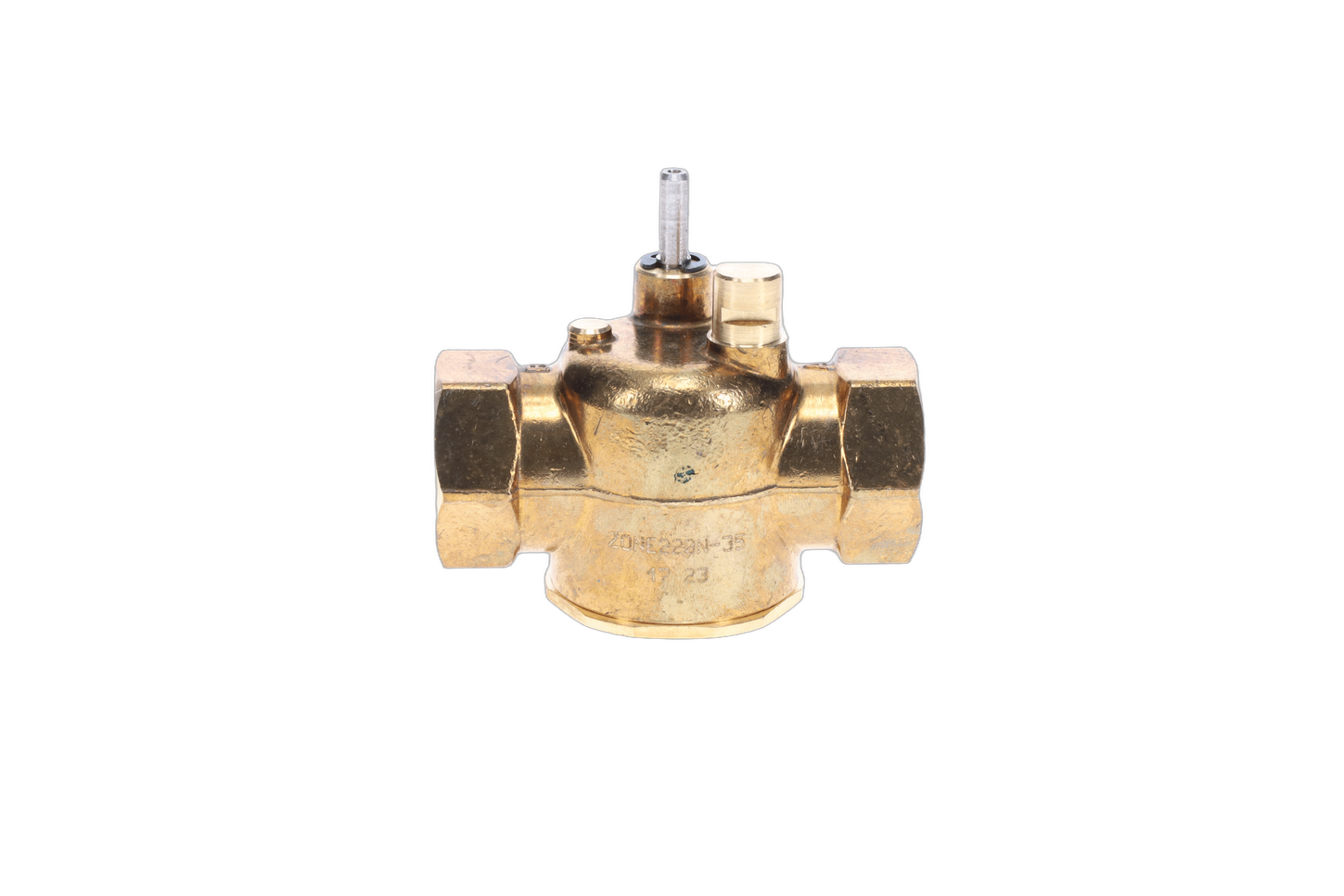

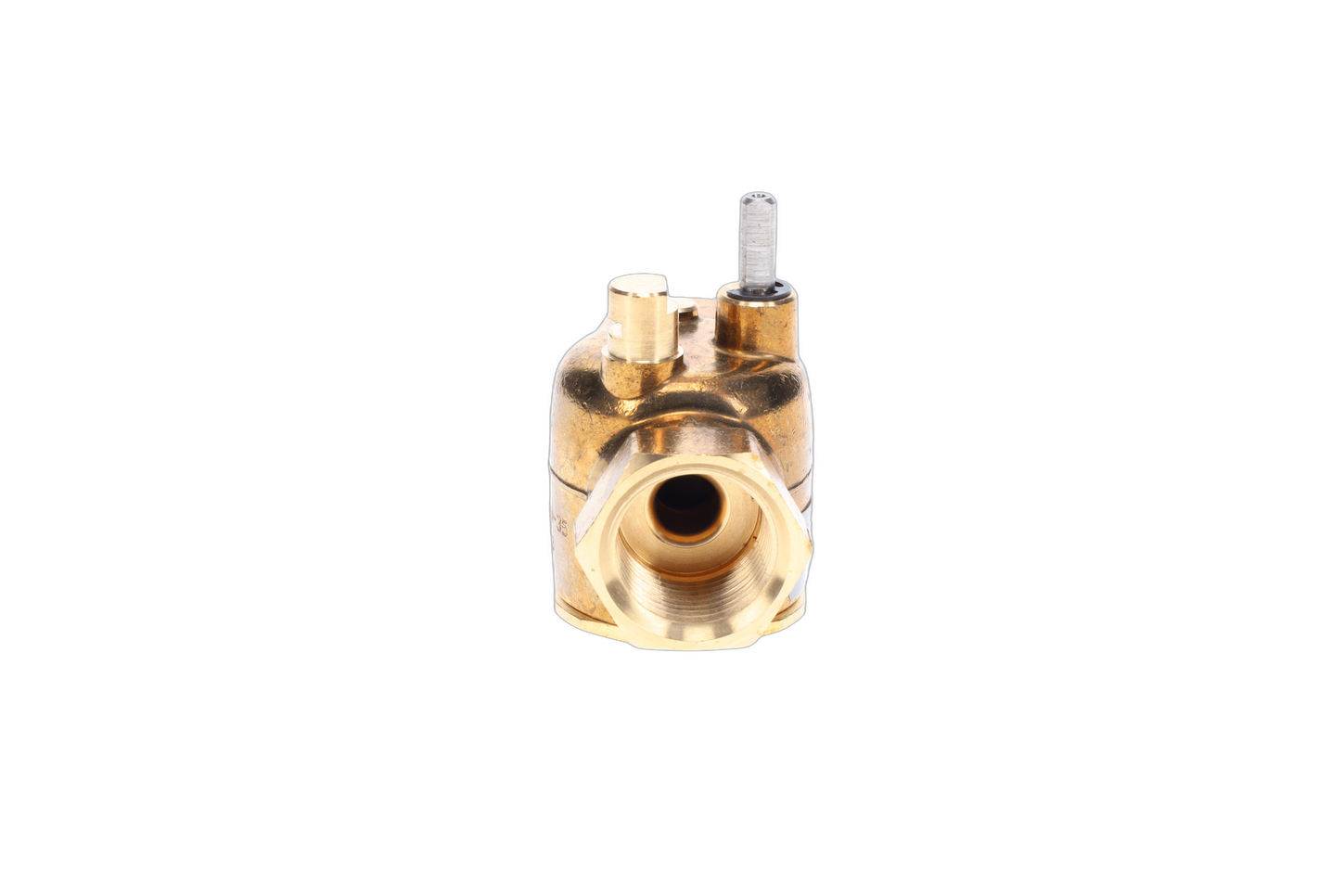

Belimo ZONE220N-35
SKU: CS4063573MPN: ZONE220N-35
Zone Valve (ZV), ¾”, 2-way, Cv 3.5
Product Details
Zone Valve (ZV), ¾”, 2-way, Cv 3.5
Attributes
| Valve Size | 0.75” [20] |
| Cv | 3.5 |
| Flow Pattern | 2-way |
| Valve Trim | Stainless steel |
| Close-Off Pressure ∆Ps | 30 psi |
| Pressure Independent | NO |
| Fluid | chilled or hot water, up to 50% glycol |
| Pipe Connection | NPT female ends |
| Fluid Temp Range (Water) | 32…212°F [0…100°C] |
| Cv Range [Gpm] | 1.21…3.5 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 1.1…3.0 m³/h |
| Flow Characteristic | on/off |
| Valve Body | forged brass |
| Stem | stainless steel |
| Seat | EPDM |
| Body Pressure Rating | 300 psi |
| Housing Seal | EPDM |
Specifications
| SKU | CS4063573 |
|---|---|
| MPN | ZONE220N-35 |
