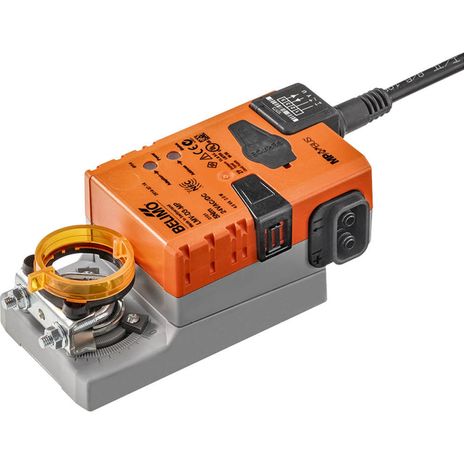

Belimo LMV-D3-MP

Name: Belimo LMV-D3-MP
Brand: Belimo
SKU: CS4062938
Price: 313.30 USD
Availability: InStock

SKU: CS4062938MPN: LMV-D3-MP

Volumetric flow controller VAV-Compact, 45 in-lb [5 Nm], AC/DC 24 V, MP-Bus, IP54

$313.30

Unit

1 Unit Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Documents

Volumetric flow controller VAV-Compact, 45 in-lb [5 Nm], AC/DC 24 V, MP-Bus, IP54

Control	modulating communicative
Torque	45 in-lb
Nominal Voltage	AC/DC 24 V
Enclosure	UL Enclosure Type 2
Power Consumption In Operation	2 W
Power Consumption In Rest Position	1 W
Input Impedance	100 kΩ
Position Indication	Mechanically, pluggable
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-4…122°F [-20…50°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Movement Type	Rotative
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Nominal Voltage Range	AC 19.2…28.8 V / DC 21.6…35.0 V
Mode Of Operation	Type 1
Torque Motor	45 in-lb [5 Nm]
Fail-Safe Function	Non fail-safe
Control Type Web	MP-Bus DC 2…10 V
