Siemens 257-02064

Name: Siemens 257-02064
Brand: Siemens Building Technologies
SKU: CS396544
Price: 166.54 USD
Availability: OutOfStock

SKU: CS396544MPN: 257-02064Alternate Part #: SMNS-257-02064BUPC/EAN: 4034106360436

MT Series 3W Valve Assembly, ANSI 250, Linear, ½”, FxF, 0.4Cv, 3-8psi SR, Pnu

Siemens Building Technologies 256-02064A, 256-02067A, 256-02072A, 256-02073A, 256-02075A, 256-02076A, 256-02078A, 256-02079A, 257-02064, 257-02072B, 257-02073B, 257-02075B, 257-02079B, 258-02073, 258-02075

$166.54

Unit

Available on backorder

Quantity

remove

add

Product Details

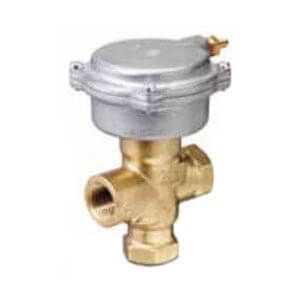

This Valve Assembly is a Powermite 599 MT Series, ANSI Class 250, 3-W, Mix, Linear, 0.4 Cv, FxF, ½”, Brass Body, Includes MT Series 2 In Pneumatic Actuator with 3-8 psi SR, Used for control of hot or chilled water for convectors

Attributes

Actuator Type	Pneumatic
Close Off Pressure	40 psi
End Connection	NPT
Fail Safe	Yes
Flow Characteristic	Linear
Flow Coefficient Cv	0.40000000596046
Max Differential Pressure Liquid	25 psi
Max Inlet Pressure Absolute Liquid	400 psi
Medium	Water;Water with anti-freeze
Medium Temperature	35…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	35 ºF
Operating Voltage	Pneumatic
Port Configuration	3-Way Mixing
Spring Range	3-8 psi
Trim Material	Brass
Valve Size	0.5 in
Valve Type	Three-way
