Square D 8536SEG1V06H30

Name: Square D 8536SEG1V06H30
Brand: Square D
SKU: CS3905233
Availability: OutOfStock

SKU: CS3905233MPN: 8536SEG1V06H30UPC/EAN: 785901763598

NEMA motor starter, Type S, nonreversing, Size 3, 90A, 50HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 480VAC coil, NEMA 1

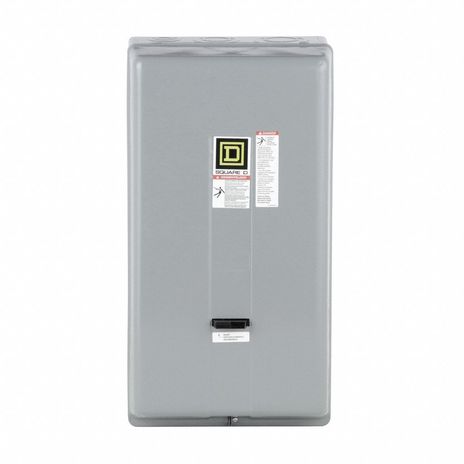

Square D 8536SEG1V02H30S, 8536SEG1V06H30, 8536SEG1V08H30

Product Details

H5181 NEMA Magnetic Motor Starter Overload Relay Amp Setting 30 to 90A Coil Volts 480V AC Enclosure NEMA Rating 1 Auxiliary Contact Form 1NO HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp Starter Type NEMA Style Action Nonreversing Hz 50/60 Number of Poles 3 Amps AC 90 NEMA Size 3 Width 8.4 in Features Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism

Attributes

In Rated Current	90 A
In Rated Current 1	90 A
Auxiliary Contact Composition	without
Control Circuit	common control circuit
Electrical Connection	screw clamp terminals
Motor Starter Type	non reversing
Motor Starter Type 1	non reversing
Nema Size	3
Poles Description	3P
Product Certifications	UL listed# #CSA# #NEMA
Product Or Component Type	motor starter
Range Of Product	S
