Turck WKM 50-2M/S90-SP

SKU: CS3890199MPN: WKM 50-2M/S90-SPAlternate Part #: U2-09419

U2-09419 - CORD,⅞IN.MINIFAST

Turck WKM 50-2M/S90-SP
Turck EKRL001-A5.500-FE8Y-5, EKRT-A5.500-FE24-5, EKRT-A5.500-GU2K.SP-3.3, EKWL001-A5.500-FE8Y-20, EKWL001-A5.500-FE8Y-5, EKWT-A5.500-GC84-1, EKWV001-A5.500-FE8Y-20, EKWV001-A5.500-FE8Y-5, RKM 50-1M/S90-SP, RKM 50-2M/S90-SP, RSM 50-2M/S90-SP, WKM 50-2M/S90-SP
Turck WKM 50-2M/S90-SP
Turck EKRL001-A5.500-FE8Y-5, EKRT-A5.500-FE24-5, EKRT-A5.500-GU2K.SP-3.3, EKWL001-A5.500-FE8Y-20, EKWL001-A5.500-FE8Y-5, EKWT-A5.500-GC84-1, EKWV001-A5.500-FE8Y-20, EKWV001-A5.500-FE8Y-5, RKM 50-1M/S90-SP, RKM 50-2M/S90-SP, RSM 50-2M/S90-SP, WKM 50-2M/S90-SP
$85.68
Unit
Available on backorder
remove
add

Product Details

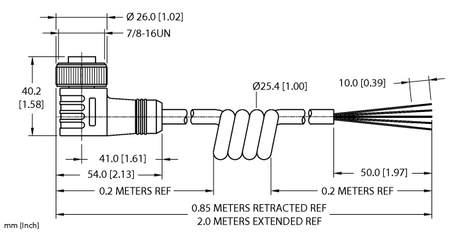

Actuator and Sensor Cordset

Connection Cable

  • ⅞” Female, Right-angle, 5-pin
  • General Purpose Cable
  • Yellow TPU jacket, 5X18 AWG

Attributes

Approvals UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Cable Diameter Ø  7.24 mm
Cable Jacket TPU, Yellow
Connector Body Plastic, TPU, Yellow
Coupling Nut Brass, CuZn, Nickel-plated
Current 9 A
Design Single-ended
Ecl Ss Code V5 1 4 27250107 -/- Connection cable sensor-actuator
Number Of Conductors 5.0000
Number Of Contacts 5
Protection Class When Coupled IP67, IP68, IP69, IP69K
Voltage 600 V

Specifications

SKUCS3890199
MPNWKM 50-2M/S90-SP
Alternate Part #U2-09419
