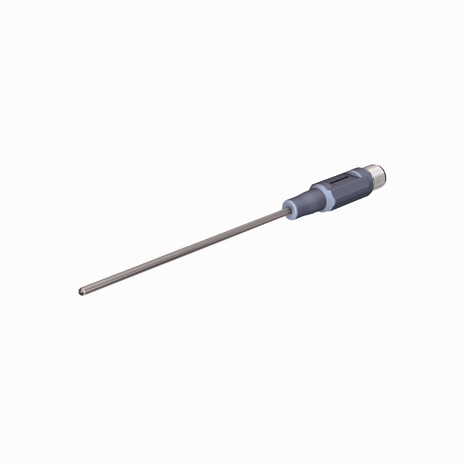

Turck TTM100C-203A-CF-LI6-H1140-L100
SKU: CS3878054MPN: TTM100C-203A-CF-LI6-H1140-L100Alternate Part #: 9910533UPC/EAN: 4047101249392
9910533 - PT100, TRANSMITTER, GEN., GEN.
$273.08
UnitAvailable on backorder
Product Details
Temperature Detection
With Current Output
- Miniature design
- Analog output 4…20 mA
- Factory setting 0…100 °C (other settings on request)
- Compression fitting process connection
- Bendable probe (min. bending radius: 3x outer diameter; excluding 30-mm probe tip)
Attributes
| Ambient Temperature | -40…+80 °C |
| Approvals | CE |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90251900900.0000 |
| Design | Without display (integrated probe) |
| Detection Type | medium contact |
| Ecl Ss Code V5 1 4 | 27200206 -/- Transducer (temperature) |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L) |
| Measuring Range | 0…100 °C |
| Operating Voltage | 5.5…32 VDC |
| Process Connection | For compression fittings, thermowell or direct mounting |
| Protection Class | IP67 |
Specifications
| SKU | CS3878054 |
|---|---|
| MPN | TTM100C-203A-CF-LI6-H1140-L100 |
| Alternate Part # | 9910533 |
| UPC/EAN | 4047101249392 |
