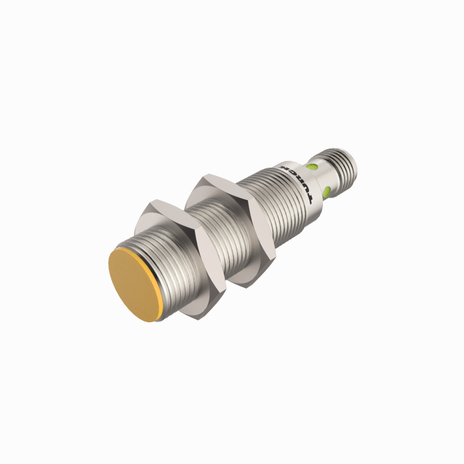

Turck TB-EM18WD-H1147
SKU: CS3877190MPN: TB-EM18WD-H1147Alternate Part #: 7030224UPC/EAN: 4047101115161
7030224 - HF
Contact us for pricing and availability
Product Details
HF Read/Write Head
Stainless Steel
- Threaded barrel, M18 x 1
- Stainless steel, 1.4404
- Front cap made of liquid crystal polymer
- High protection class IP69K, for harsh environments
- Special double-lip seal
- Protection against all common acid and alkaline cleaning agents
- For the food industry
- Laser engraved label, permanently legible
- Powered and operated only via connection to BL ident interface module
- M12 × 1 connector, connection only via BL ident extension cable
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85369095000.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27280401 -/- Identification RFID |
| Fieldbus Protocol | Connection to RFID interface |
| Housing Material | Stainless steel, 1.4404 (AISI 316L) |
| Mounting | Flush |
| Protection Class | IP68/IP69K |
| Radio Communication And Protocol Standards | ISO 15693, NFC Typ 5 |
| Read Write Distance Max | 30 mm |
| Technology | HF RFID |
Specifications
| SKU | CS3877190 |
|---|---|
| MPN | TB-EM18WD-H1147 |
| Alternate Part # | 7030224 |
| UPC/EAN | 4047101115161 |
