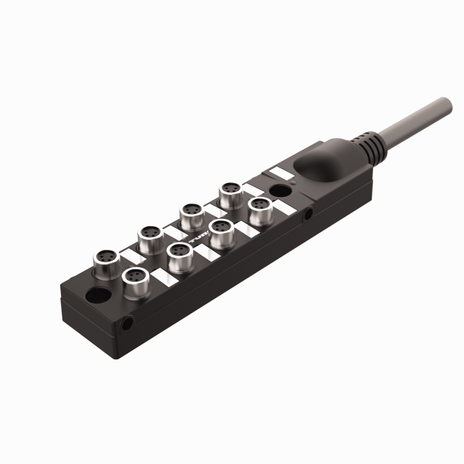

Turck TB-8M8M-4-5
SKU: CS3877165MPN: TB-8M8M-4-5Alternate Part #: UX00416
UX00416 - J-BOX,M8PICOFAST
$172.88
UnitAvailable on backorder
Product Details
Passive Actuator/Sensor Junction Box, 8 Ports
M8, 4 pole I/O port with cable homerun
- Housing material: Nylon
- Housing color: Black
- Fully encapsulated
- Protection class: IP67, IP68, IP69, IP69K; NEMA 1, 3, 4, 6P, 12
- RoHS compliant
- CE compliant
- I/O port: 4-pin
- Instrumentation Tray Cable
- Black PVC jacket, shielded, 19X22 AWG
- Sunlight Resistant
- -40 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
Attributes
| Ampacity | 2 A per signal contact, total current 6 A |
| Approvals | CE, UKCA, RoHS |
| Customs Tariff Number | 85366930000.0000 |
| Homerun Connector | Cable, Side exit |
| Housing Material | Plastic, PA6-GF30 |
| I O Port | Female, M8 × 1 |
| Number Of Contacts | 4 |
| Number Of Ports | 8.0000 |
| Voltage | 30 V |
Specifications
| SKU | CS3877165 |
|---|---|
| MPN | TB-8M8M-4-5 |
| Alternate Part # | UX00416 |
