Turck RU200-CP40-2UP8X2T/S10
SKU: CS3875262MPN: RU200-CP40-2UP8X2T/S10Alternate Part #: 1610092UPC/EAN: 4047101405965
1610092 - DIF., RECT., DC, GEN.
$556.81
UnitAvailable on backorder
Product Details

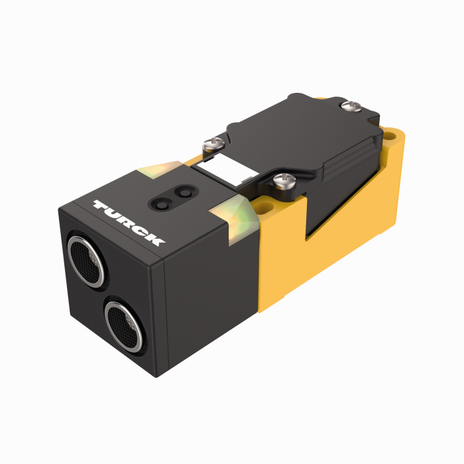

Ultrasonic Sensor
Diffuse Mode Sensor
- Separate transducers for transmitter and receiver

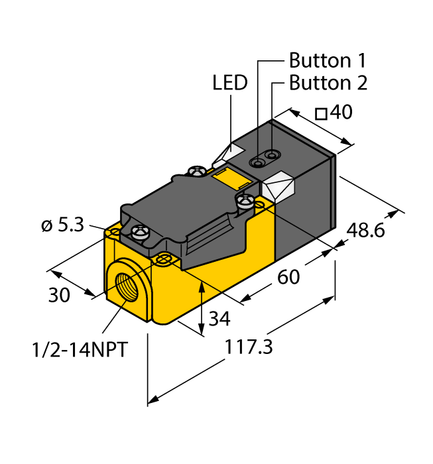

- Rectangular housing 40 x 40 x 166 mm
- Connection via screw terminals
- Terminal chamber for cable gland NPT
- Teach range adjustable via button
- Blind zone: 5 cm
- Range: 200 cm
- Resolution: 1 mm
- Aperture angle of sonic cone: ±60 °
- 2 x switching outputs, PNP
- NO/NC programmable
Attributes
| Ambient Temperature | 0…+70 °C |
| Approvals | CE, cULus |
| Construction Size | 166 x 40 x 40 mm, CP40 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27272803 -/- Ultrasonic proximity switch |
| Electrical Connection | Terminal chamber, Terminal box with cable gland |
| Function | Proximity |
| Housing Material | Plastic, PBT-GF30-V0 |
| Operating Mode | Time of Flight |
| Operating Voltage | 15…30 VDC |
| Output Function | PNP |
| Protection Class | IP40 |
| Radiation Direction | straight |
| Range | 50…2000 mm |
| Resolution | 1 mm |
| Special Feature | Pushbutton |
| Switching Element Function | NO/NC |
Specifications
| SKU | CS3875262 |
|---|---|
| MPN | RU200-CP40-2UP8X2T/S10 |
| Alternate Part # | 1610092 |
| UPC/EAN | 4047101405965 |
