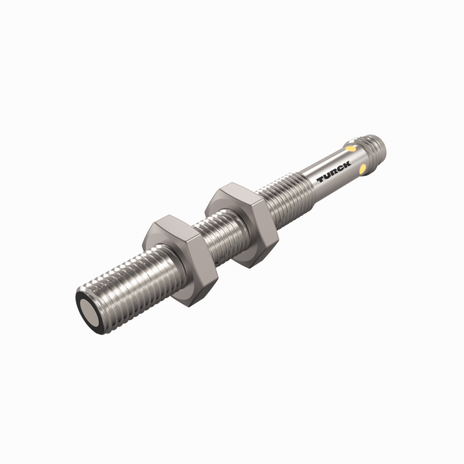

Turck RU10L-M08-UN8X-V1141
SKU: CS3875239MPN: RU10L-M08-UN8X-V1141Alternate Part #: 100003160UPC/EAN: 4047101476156
100003160 - RET., BARREL, DC, CON. M8
$279.13
UnitAvailable on backorder
Product Details
Ultrasonic Sensor
Retroreflective Sensor
- Smooth sonic transducer face
- Cylindrical housing M08, potted
- Connection via M8 × 1 male connector
- Teach range adjustable via connection cable
- Blind zone: 2 cm
- Range: 10 cm
- Resolution: 0.2 mm
- Aperture angle of sonic cone: ±9 °
- 1 × switching output, NPN
- Teachable settings
- NO/NC programmable
- IO-Link
Attributes
| Ambient Temperature | 0…+50 °C |
| Approvals | CE, cULus |
| Communication Protocol | IO-Link |
| Construction Size | M8 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27272802 -/- Retroreflective ultrasonic sensor |
| Electrical Connection | Connector, M8 × 1 |
| Function | Retroreflective |
| Housing Material | Metal, CuZn, Nickel Plated |
| Operating Mode | Time of Flight |
| Operating Voltage | 18…30 VDC |
| Output Function | NPN |
| Protection Class | IP67 |
| Range | 20…100 mm |
| Resolution | 0.2 mm |
| Special Feature | Compact |
| Switching Element Function | NO/NC |
Specifications
| SKU | CS3875239 |
|---|---|
| MPN | RU10L-M08-UN8X-V1141 |
| Alternate Part # | 100003160 |
| UPC/EAN | 4047101476156 |
