Turck RSM RKM 30-4M

SKU: CS3864948MPN: RSM RKM 30-4MAlternate Part #: U2255-4

U2255-4 - CORD,⅞IN.MINIFAST

Turck RSM RKM 20-10M, RSM RKM 20-2M, RSM RKM 20-5M, RSM RKM 30-10M, RSM RKM 30-1M, RSM RKM 30-2M, RSM RKM 30-3M, RSM RKM 30-4M, RSM RKM 40-10M, RSM RKM 40-4M, RSM RKM 40-5M, RSM RKM 50-0.3M, RSM RKM 50-10M, RSM RKM 50-15M, RSM RKM 50-1M
Turck RSM RKM 20-10M, RSM RKM 20-2M, RSM RKM 20-5M, RSM RKM 30-10M, RSM RKM 30-1M, RSM RKM 30-2M, RSM RKM 30-3M, RSM RKM 30-4M, RSM RKM 40-10M, RSM RKM 40-4M, RSM RKM 40-5M, RSM RKM 50-0.3M, RSM RKM 50-0.5M, RSM RKM 50-0.7M/S90, RSM RKM 50-10M
Turck RSM RKM 20-0.5M, RSM RKM 20-0.6M, RSM RKM 20-1.2M, RSM RKM 20-10M, RSM RKM 20-12M, RSM RKM 20-14M, RSM RKM 20-15M, RSM RKM 20-1M, RSM RKM 20-2.1M, RSM RKM 20-20M, RSM RKM 20-22M, RSM RKM 20-25M, RSM RKM 20-2M, RSM RKM 20-3.5M, RSM RKM 20-30M
Turck PKG 3Z-3-PSG 3, PKW 4M-5-PSW 4M, RKM 34-20M, RKM 34-25M, RKM 34-35M, RSCV RKCV 5723-10M, RSCV RKCV 5723-15M, RSCV RKCV 5723-1M, RSCV RKCV 5723-20M, RSCV RKCV 5723-2M, RSCV RKCV 5723-3M, RSCV RKCV 5723-4M, RSCV RKCV 5723-5M, RSCV RKCV 5723-6M, RSCV RKCV 5732-2M
Turck RSM RKM 20-10M, RSM RKM 20-2M, RSM RKM 20-5M, RSM RKM 30-10M, RSM RKM 30-1M, RSM RKM 30-2M, RSM RKM 30-3M, RSM RKM 30-4M, RSM RKM 40-10M, RSM RKM 40-4M, RSM RKM 40-5M, RSM RKM 50-0.3M, RSM RKM 50-10M, RSM RKM 50-15M, RSM RKM 50-1M
Turck RSM RKM 20-10M, RSM RKM 20-2M, RSM RKM 20-5M, RSM RKM 30-10M, RSM RKM 30-1M, RSM RKM 30-2M, RSM RKM 30-3M, RSM RKM 30-4M, RSM RKM 40-10M, RSM RKM 40-4M, RSM RKM 40-5M, RSM RKM 50-0.3M, RSM RKM 50-0.5M, RSM RKM 50-0.7M/S90, RSM RKM 50-10M
$53.96
Unit
Available on backorder
remove
add

Product Details

Power Cable

PVC Cable Jacket

  • Power cable: 3 × 0.83 mm2, 3 × 18 AWG
  • Jacket material: PVC
  • Jacket color: yellow
  • Jacket diameter: 6.2 mm
  • UV resistant
  • Flame retardant acc. to CSA FT4
  • UL, CSA approval
  • RoHS compliant
  • Protection class: NEMA 1, 3, 4, 6P and IEC IP67

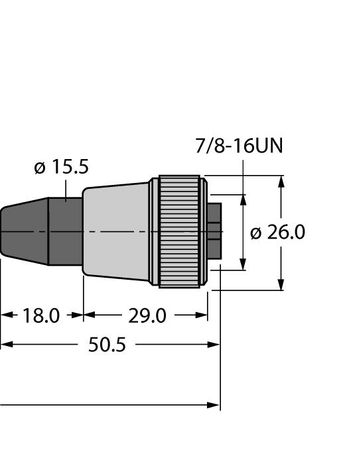

  • ⅞” female, straight

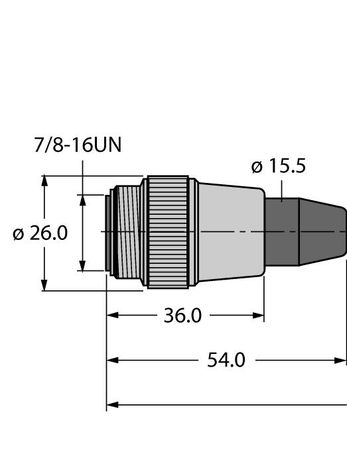

  • ⅞” male, straight
  • Cable length: 4.0 m
  • ⅞” Male, Straight, 3-pin
  • ⅞″ Female, Straight, 3-pin
  • Instrumentation Tray Cable
  • Yellow PVC jacket, 3X18 AWG
  • Sunlight Resistant
  • -40 Cold Bend Rating
  • Oil Resistant
  • Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
  • Flexlife® and C-Track Approved

Attributes

Application Power (>11 Amps)
Approvals UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
Cable Diameter Ø  6.2 mm
Cable Jacket PVC, Yellow
Connector A Male, ⅞″-16 UN, Straight
Connector B Female, ⅞″-16 UN, Straight
Connector Body Plastic, TPU, Yellow
Coupling Nut Brass, CuZn, Nickel-plated
Current 9 A
Customs Tariff Number 85444290900.0000
Design Double-ended
Ecl Ss Code V5 1 4 27230209 -/- Current supply, voltage
Number Of Conductors 3.0000
Number Of Contacts 2+PE
Protection Class When Coupled IP67
Special Feature Tray cable
Voltage 600 V

Specifications

SKUCS3864948
MPNRSM RKM 30-4M
Alternate Part #U2255-4
