All ProductsTurck

Turck RI-10T10R-4A2500-10MIL/N40

SKU: CS3832438MPN: RI-10T10R-4A2500-10MIL/N40Alternate Part #: 1545586

1545586 - INCREMENTAL

Turck RI-01Q5F3-2A60-CA, RI-04Q6C-2H1000-H1181, RI-04Q6C-2H1000-H1481, RI-04Q6C-2H500-H1481, RI-04QA0C-2H500-C, RI-04QA0C-2H500-CA, RI-04T6S-1H200-C, RI-10S10C-2B50-H1181, RI-10S10C-2K2500-H1181, RI-10S10C-4A2500-H1481, RI-10S10C-4B4096-10MIL/N24/N40, RI-10S10C-CA1000-H1181, RI-10S10S-2B50-12M23, RI-10S10S0-2B1000-10MIL, RI-10S12C-4A1024-12M23
$543.75
Unit
Available on backorder
remove
add

Product Details

Incremental Shaft Encoder

Industrial Line

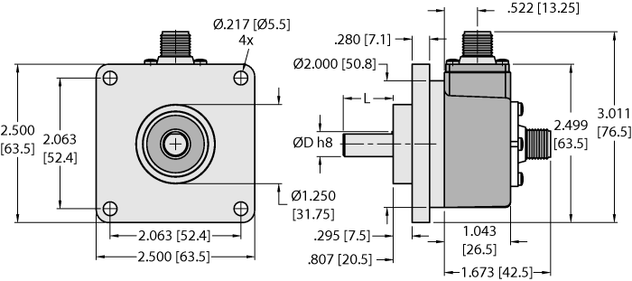

  • Rectangular flange, Ø 63.5 mm
  • Solid shaft, Ø 10 mm × 20 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 5 VDC
  • Male connector MIL, 10-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 2500 pulses per revolution

Attributes

Ambient Temperature -40…+85 °C
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Connector
Encoder Line Industrial-Line
Flange Diameter Ø  63.5 mm
Flange Type Rectangular flange
Housing Material Die-cast zinc
Output Function RS422, with inverted signals
Output Type Incremental
Protection Class IP67
Protection Class Shaft IP65
Resolution Incremental 2500  ppr
Shaft Diameter D Mm 10 mm
Shaft Type Solid shaft
Technology Optical

Specifications

SKUCS3832438
MPNRI-10T10R-4A2500-10MIL/N40
Alternate Part #1545586
