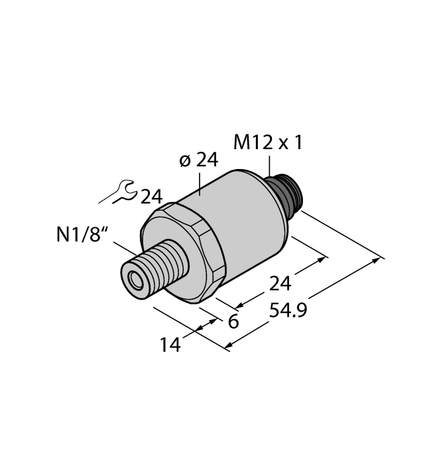

Turck PT30PSIG-2014-I2-H1141
SKU: CS3831735MPN: PT30PSIG-2014-I2-H1141Alternate Part #: 6836850UPC/EAN: 4047101426212
6836850 - METAL (REL) , TRANSM, GEN., GE
$235.26
UnitAvailable on backorder
Product Details
Pressure Transmitter
With Current Output (2-Wire)
- Fully welded metal measuring cell
- Pressure range 0…30 psi rel.
- 7…33 VDC
- Analog output 4…20 mA
- Process connection ⅛”-27 NPT male thread
- Plug-in device, M12 × 1
Attributes
| Ambient Temperature | -30…+85 °C |
| Approvals | CE, Metrological certification (RUS), cULus |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90262020000.0000 |
| Design | Without display |
| Ecl Ss Code V5 1 4 | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Electrical Connection | Connector, M12 × 1 |
| Electrical Output | Current output (2-wire) |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Medium Temperature | -40…+135 °C |
| Operating Voltage | 7…33 VDC |
| Pressure Range Bar | 0…2.07 bar |
| Pressure Range Psi | 0…30 psi |
| Pressure Transducer Material | Stainless steel 1.4016 (AISI 430) |
| Pressure Type | Relative pressure |
| Process Connection | ⅛”-27 NPT male thread |
| Protection Class | IP67 |
Specifications
| SKU | CS3831735 |
|---|---|
| MPN | PT30PSIG-2014-I2-H1141 |
| Alternate Part # | 6836850 |
| UPC/EAN | 4047101426212 |
