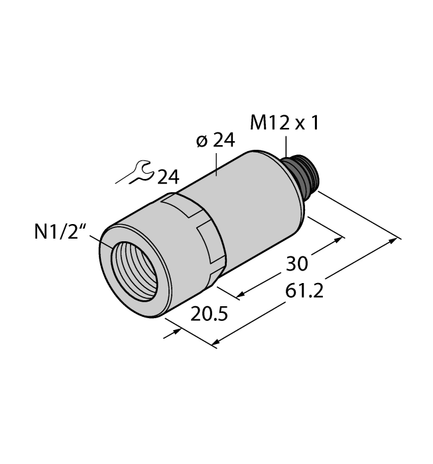

Turck PT300PSIG-2017-I2-H1141
SKU: CS3831718MPN: PT300PSIG-2017-I2-H1141Alternate Part #: 100030989UPC/EAN: 4047101559637
100030989 - NO DESC
$235.26
UnitAvailable on backorder
Product Details
Pressure Transmitter
With Current Output (2-Wire)
- Fully welded metal measuring cell
- Pressure range 0…300 psi rel.
- 7…33 VDC
- Analog output 4…20 mA
- Process connection ½”-14 NPT female thread
- Plug-in device, M12 × 1
Attributes
| Ambient Temperature | -30…+85 °C |
| Approvals | CE, Metrological certification (RUS), cULus |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90262020000.0000 |
| Design | Without display |
| Ecl Ss Code V5 1 4 | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Electrical Connection | Connector, M12 × 1 |
| Electrical Output | Current output (2-wire) |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Medium Temperature | -40…+135 °C |
| Operating Voltage | 7…33 VDC |
| Pressure Range Bar | 0…20.68 bar |
| Pressure Range Psi | 0…300 psi |
| Pressure Transducer Material | Stainless steel 1.4016 (AISI 430) |
| Pressure Type | Relative pressure |
| Process Connection | ½″-14 NPT female thread |
| Protection Class | IP67 |
Specifications
| SKU | CS3831718 |
|---|---|
| MPN | PT300PSIG-2017-I2-H1141 |
| Alternate Part # | 100030989 |
| UPC/EAN | 4047101559637 |
