Turck PSG 4M-1/S90
SKU: CS3830516MPN: PSG 4M-1/S90Alternate Part #: U3501-63
U3501-63 - CORD,M8PICOFAST
$22.42
UnitAvailable on backorder
Product Details

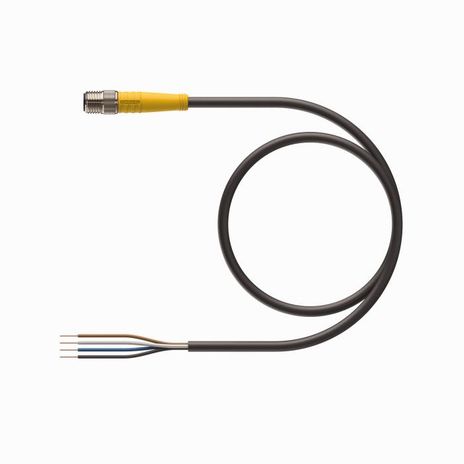

Actuator and Sensor Cordset
Connection Cable
- M8, Male, Straight, 4-pin
- Threaded Connector
- General Purpose Cable
- TPU jacket, Black, 4X26 AWG
- -40 Cold Bend Rating
- Flame Ratings: UL1061, CSA FT1
- Flexlife® and C-Track Approved
Attributes
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Cable Diameter | Ø 4.19 mm |
| Cable Jacket | TPU, Black |
| Connector Body | Plastic, TPU, Yellow |
| Coupling Nut | Brass, CuZn, Nickel-plated |
| Current | 2 A |
| Customs Tariff Number | 85444290900.0000 |
| Design | Single-ended |
| Ecl Ss Code V5 1 4 | 27250107 -/- Connection cable sensor-actuator |
| Number Of Conductors | 4.0000 |
| Number Of Contacts | 4 |
| Protection Class When Coupled | IP68 |
| Voltage | 125 V |
Specifications
| SKU | CS3830516 |
|---|---|
| MPN | PSG 4M-1/S90 |
| Alternate Part # | U3501-63 |
